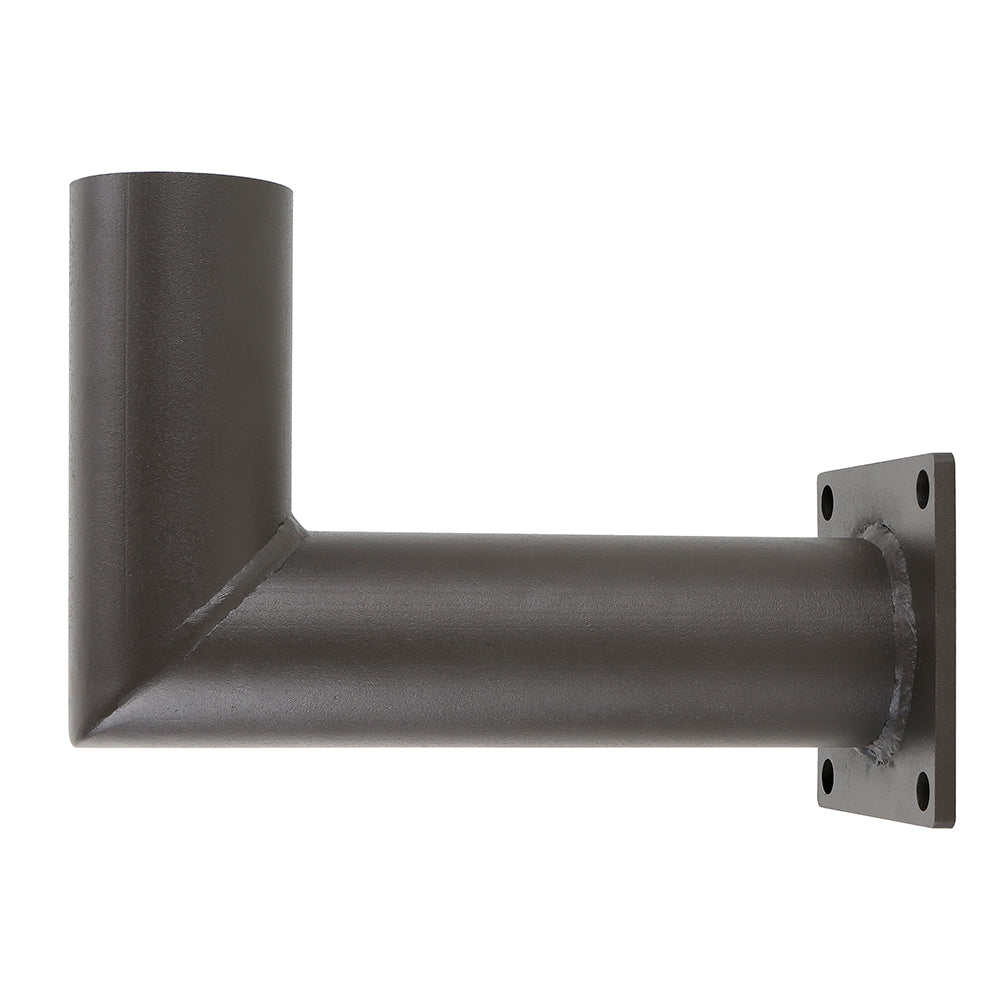

90° Wall Mount Tenon Bracket

Roll over image to zoom in Click on image to zoom

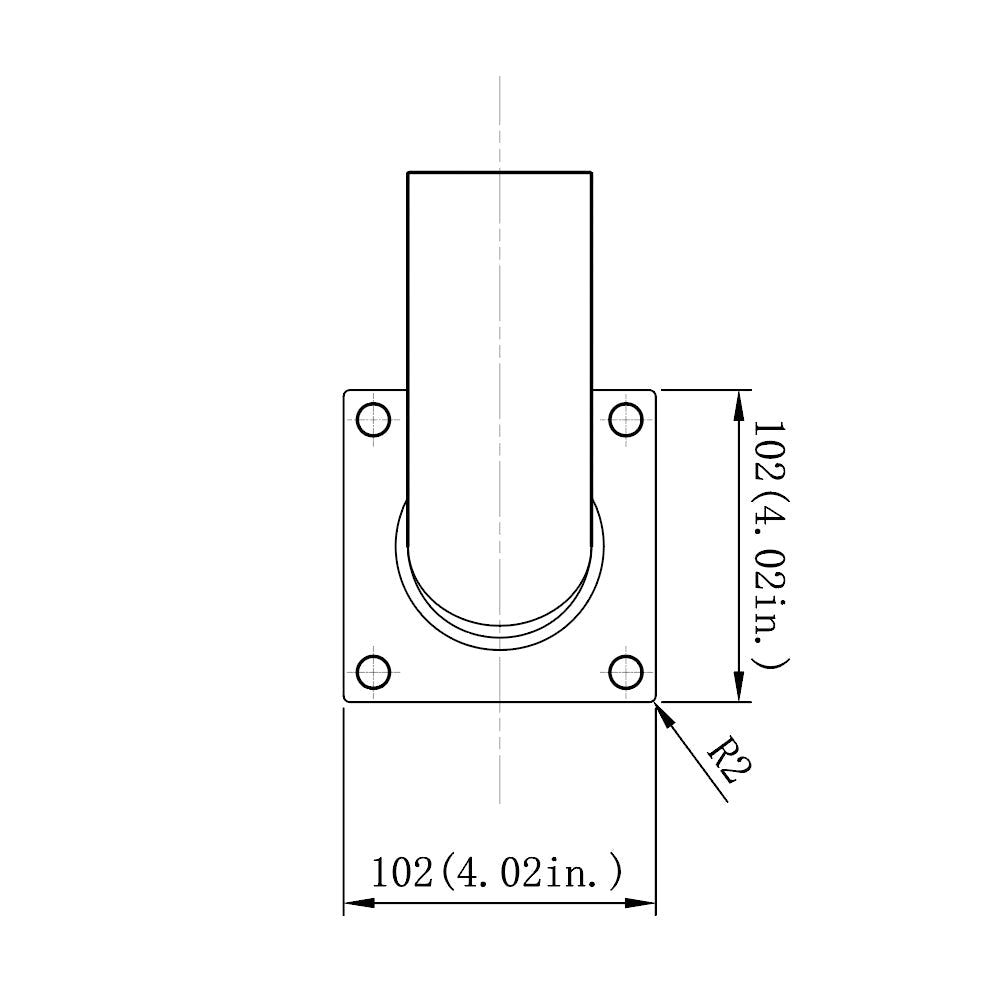

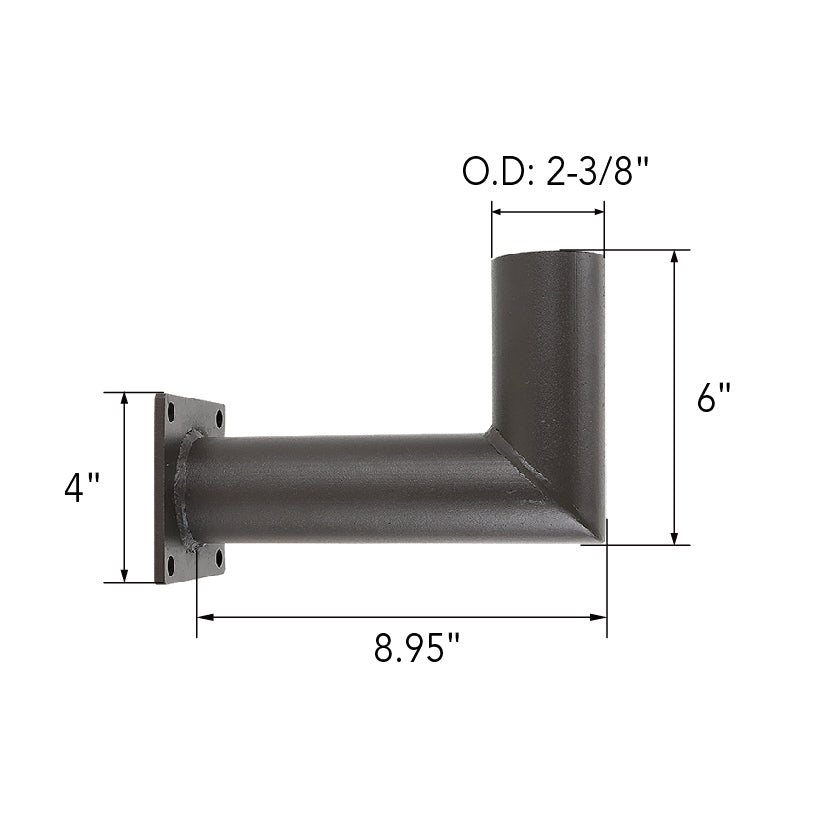

The 90˚ wall mount bracket with 2-3/8" tenon attaches a Konlite floodlight to almost any surface: wall, roof, or wood pole. Provides wiring access and abuilt-in 2-3/8" O.D. tenon to mount a fixture with our adjustable slipfitter. Suggested 3/8" diameter bolts for mounting. Mounting holes are spaced 3-1/4" apart.

Mounting Hardware included
Attaches to Any Flat Surfaces
Dark Bronze Finish

The 90˚ wall mount bracket with 2-3/8" tenon attaches a Konlite flood or area light to almost any surface: wall, roof, or wood pole. Provides wiring access and a built-in 2-3/8" O.D. tenon to mount a fixture with our adjustable slipfitter. Suggested 3/8" diameter bolts for mounting. Mounting holes are spaced 3-1/4" apart.

Performance

Brand	Konlite	MPN	RDAF-WM-SP-D
Weight	3.5 Lbs	UPC	717360778851
Height	6 In	Mount Bracket	Yoke
Length	7.76 In	Outside Diameter (O.D)	2-3/8 In
Mounting	2-3/8 in. O.D. Tenon/Wall Mount	Fixture Type	Area/Flood Light
