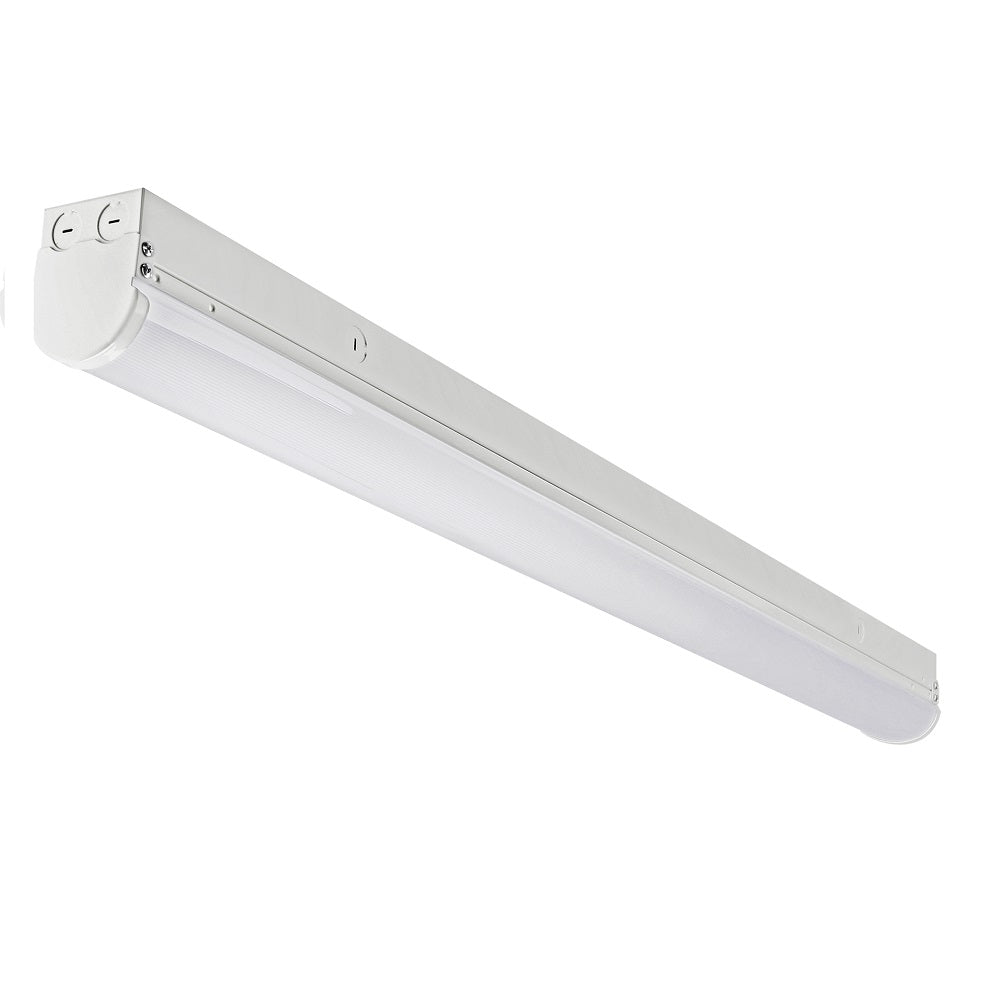

4000K 4ft Linear LED Strip Fixture
Kionlite 4ft Linear LED Strip Fixture
4ft Linear LED Strip Fixture Product details

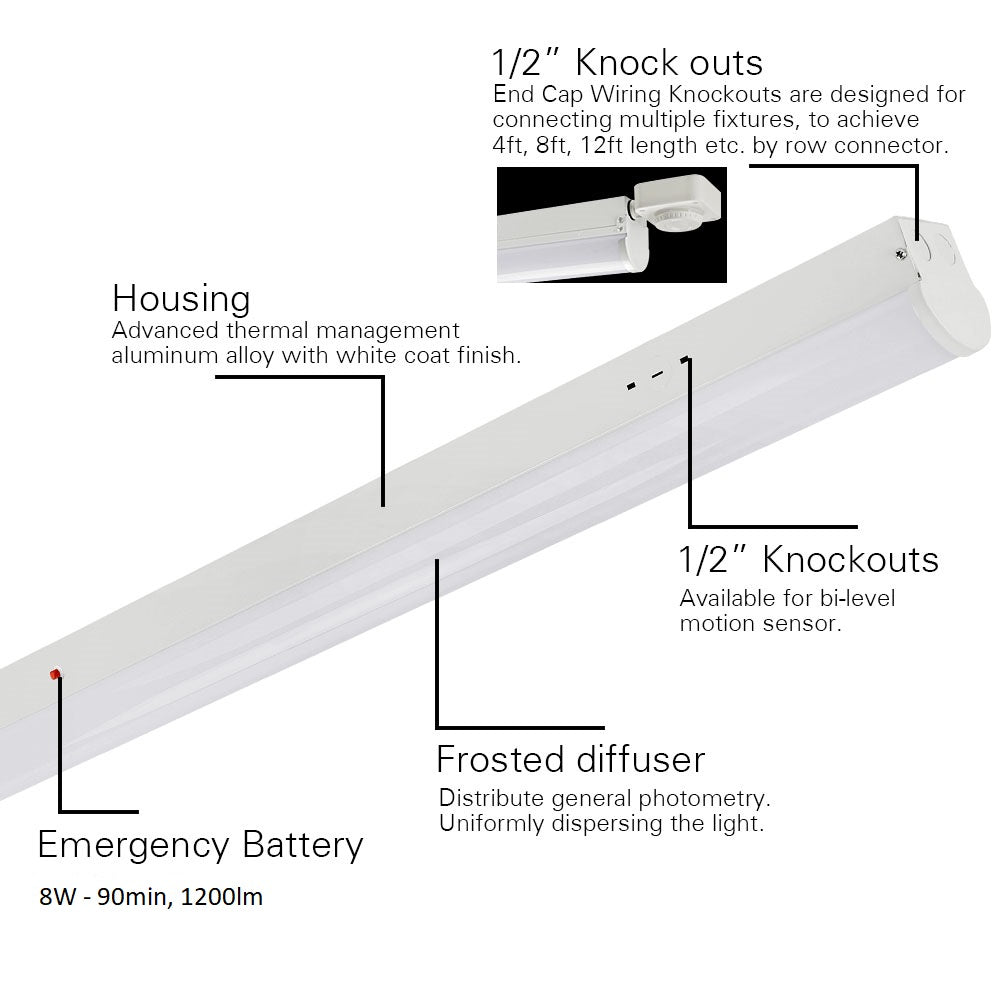

4ft LED Strip light fixture product details

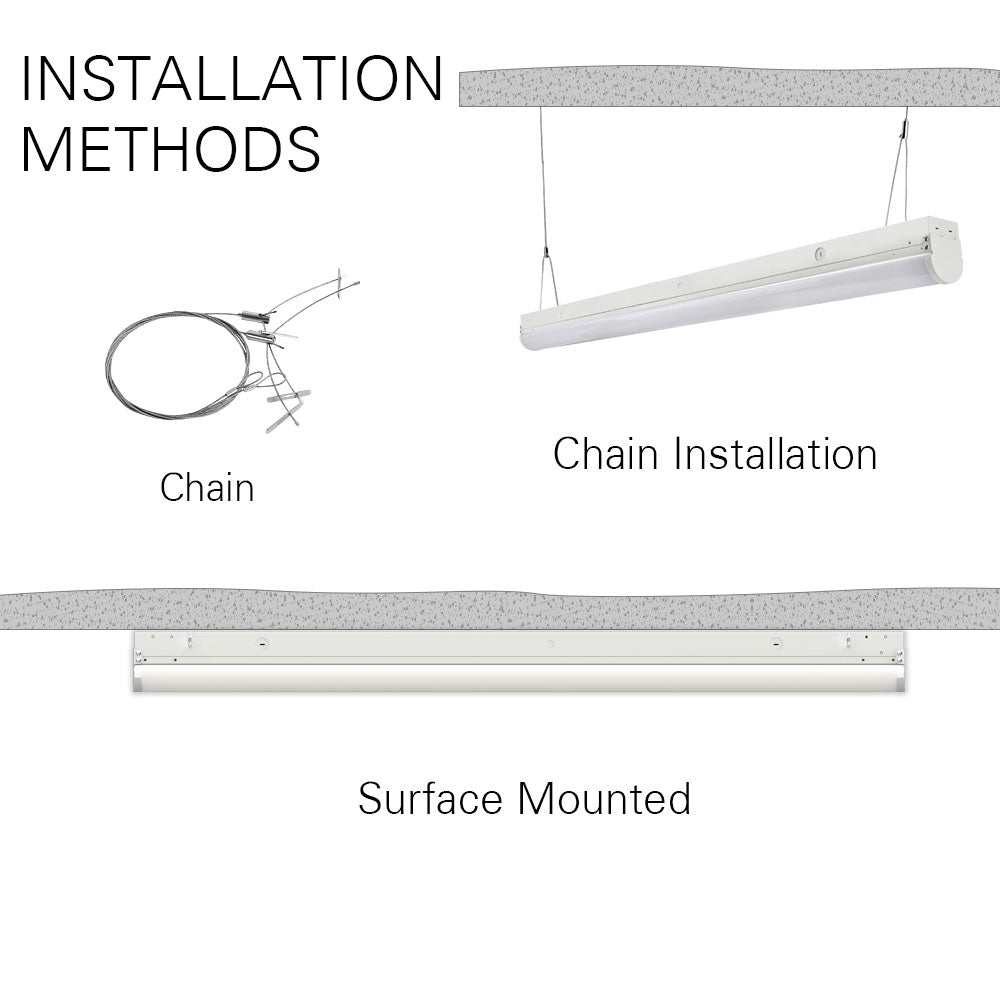

4ft LED Strip light installation methods

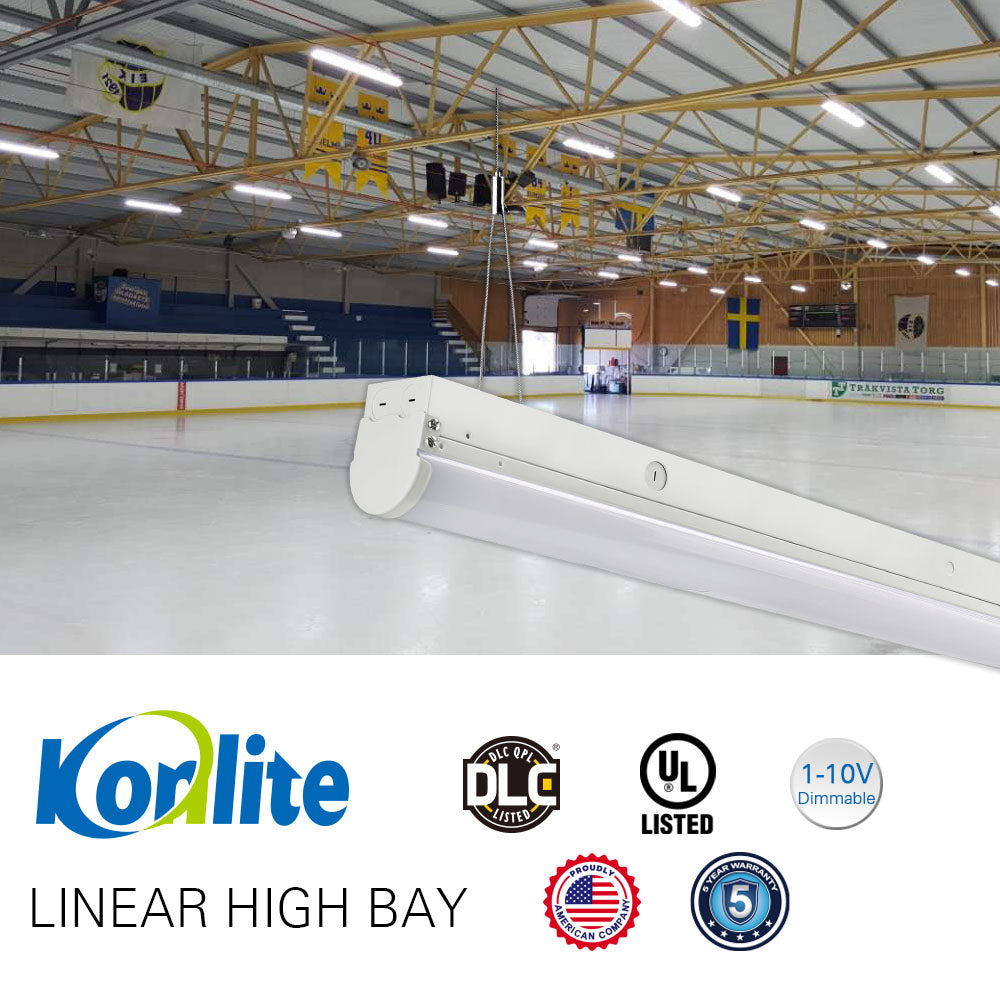

Konlite 4ft LED Strip light
4ft LED Strip light fixture

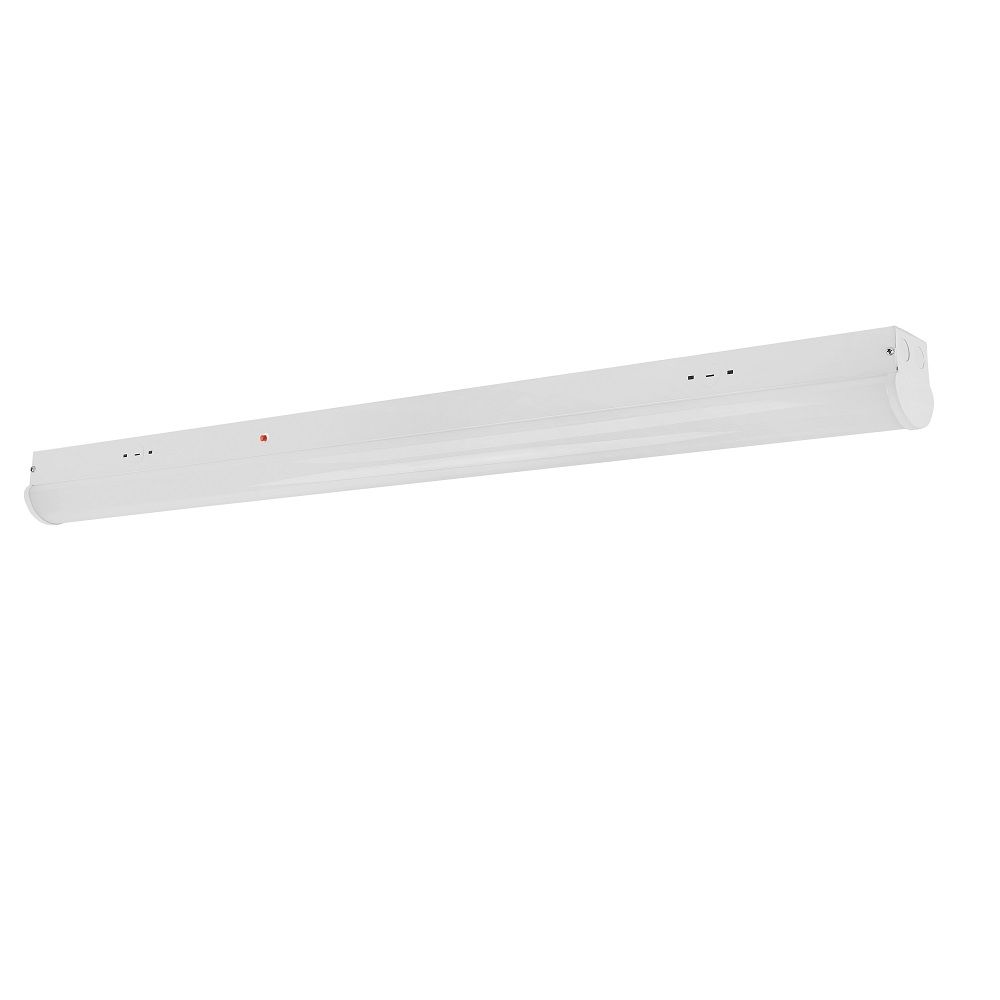

4ft LED Strip light with emergency battery

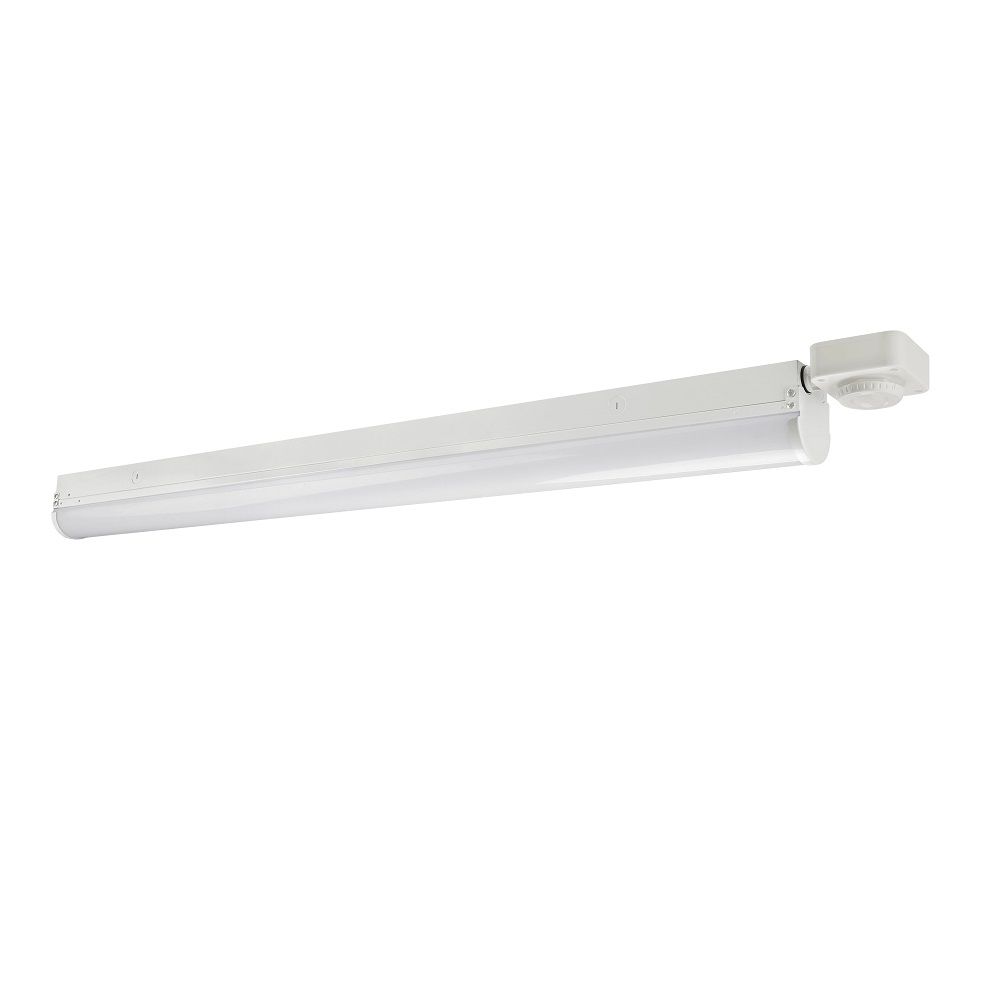

4ft LED Strip light with motion sensor and emergency battery
Konlite 4ft Linear LED Strip Fixture - 23W - 3000 Lumens - 4000K - 120-277V - Dimmable
Konlite 4ft Linear LED Strip Fixture - 23W - 3000 Lumens - 4000K - 120-277V - Dimmable
4ft Linear LED Strip Fixture
Roll over image to zoom in Click on image to zoom
4000K 4ft Linear LED Strip FixtureKionlite 4ft Linear LED Strip Fixture4ft Linear LED Strip Fixture Product details4ft LED Strip light fixture product details4ft LED Strip light installation methodsKonlite 4ft LED Strip light4ft LED Strip light fixture4ft LED Strip light with emergency battery4ft LED Strip light with motion sensor and emergency batteryKonlite 4ft Linear LED Strip Fixture - 23W - 3000 Lumens - 4000K - 120-277V - DimmableKonlite 4ft Linear LED Strip Fixture - 23W - 3000 Lumens - 4000K - 120-277V - Dimmable4ft Linear LED Strip Fixture

This Konlite 23W premium 4ft LED strip light fixture has been phased out and is no longer in stock. For replacement options, please consider the updated models:RKSL0302MWMCDN4L or RDSL0202035MCLVD4N, designed for both fluorescent retrofits and new construction projects.

  • Steel Housing, Matte white powder coated finish
  • Standard 1-10V dimmable
What's in the box
1 Lighting Fixture - 1 Installation Guide

Konlite 4ft Linear LED Strip Fixture - 23W - 3000 Lumens - 4000K - 120-277V - Dimmable

Konlite SKU: RDSL02020234KDN4LF SEARCH CODE: 14-0202
    See New Replacing Models: RKSL0302MWMCDN4L

This Konlite 23W premium 4ft LED strip light fixture has been phased out and is no longer in stock. For replacement options, please consider the updated models:RKSL0302MWMCDN4L or RDSL0202035MCLVD4N, designed for both fluorescent retrofits and new construction projects.

  • Steel Housing, Matte white powder coated finish
  • Standard 1-10V dimmable
What's in the box
1 Lighting Fixture - 1 Installation Guide
What's in the box
1 Lighting Fixture - 1 Installation Guide

Product Overview

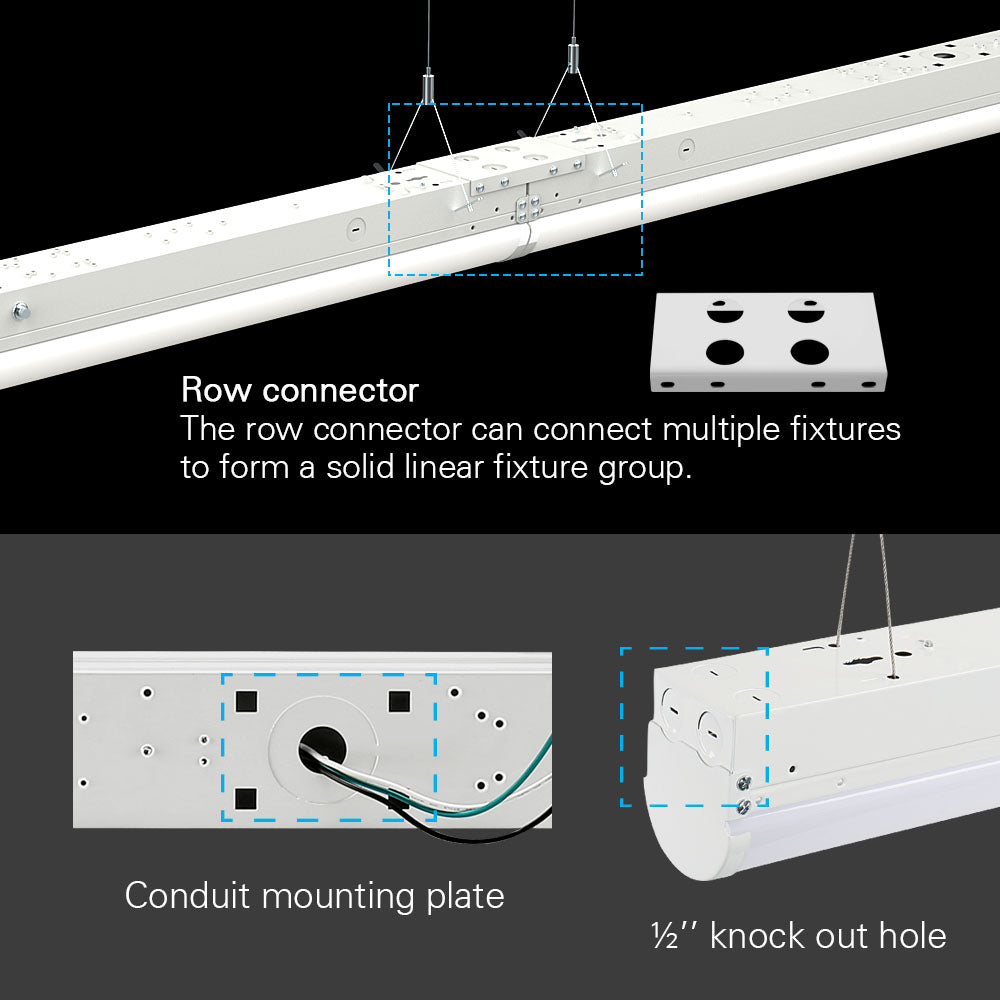

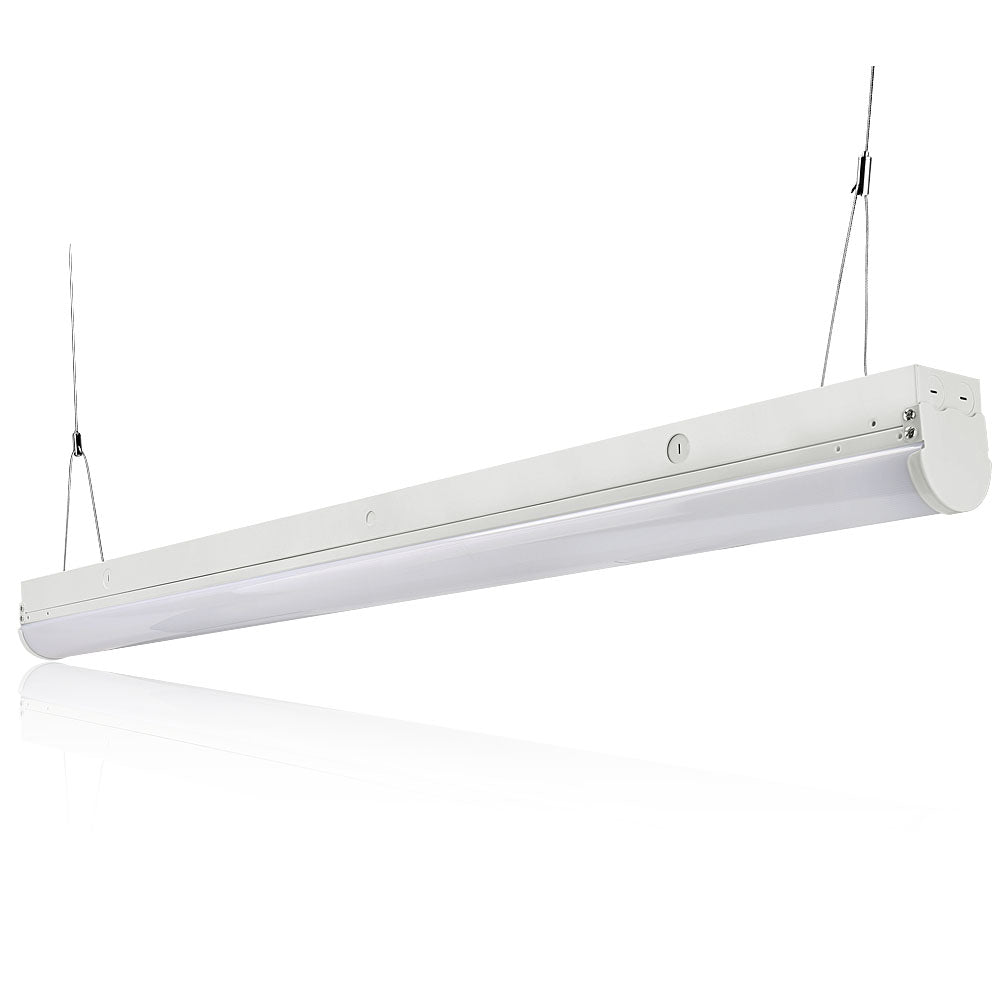

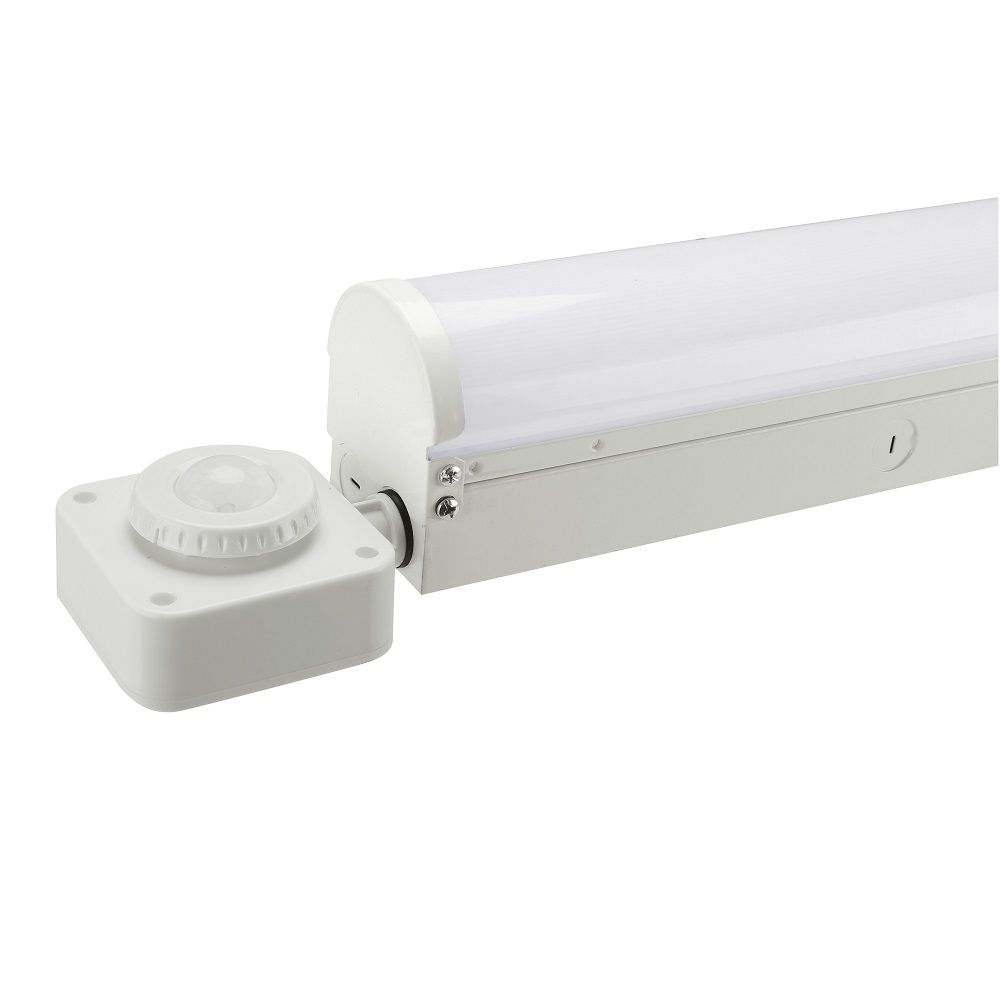

The 4ft Konlite 23 Watt LED strip light fixture is designed to retrofit existing fluorescent or new construction. Easy install- can be surface mounted to ceilings and walls or suspended with cable. Frosted acrylic diffuser provides wide light distribution and glare control. Energy efficient multi-purpose fixture is suitable for light industrial, commercial, retail, schools, healthcare or residential. 1-10V Dimming, UL, DLC certified, 5 yr. warranty. Increase energy savings with optional integral PIR motion sensor ( Field Install ) or Emergency Battery backup.

See similar 35-watt and 45-watt 4000K versions.

Applications

•Warehouses •Workshops
•Factories •Residential Ceilings
•Storage Facilities •Distribution Centers
•Retails •Supermarkets

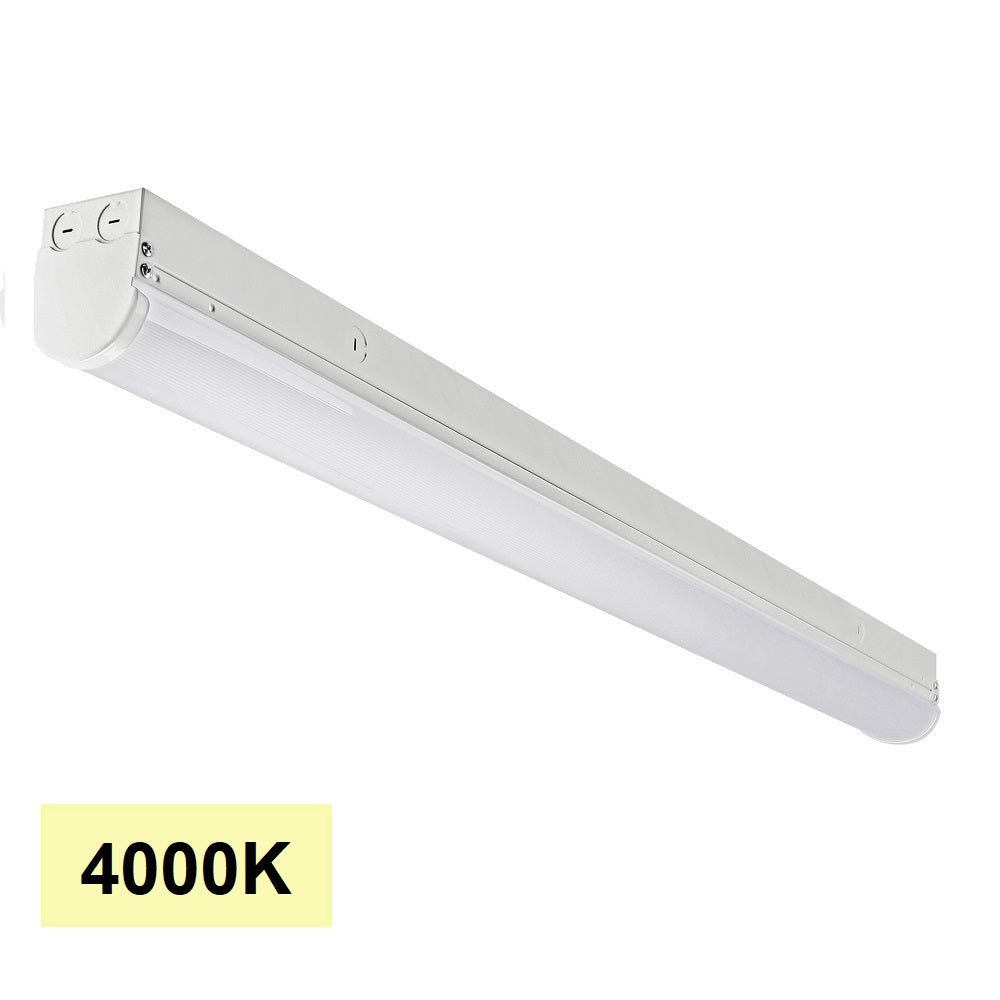

Color Temperature 4000K color temperature
Certifications
US company5 years warrantyUL listed1-10V dimmableDLC PremiumFCC certification

Specification

BrandKonliteMPNRDSL02020234KDN4LF
Warranty 5 YearsUPC717360776789
Input Voltage120-277VDimmable1-10V
Input Wattage23WEqual to 1x54W T5HO,1xF32T8
Delivered Lumens3,000LMCRI>83
Efficacy132 LM/WAvailable CCT4000K/5000K
Rated Life>50,000 HrsTHD<18%
Power Fact>0.9ControlMotion Sensor Optional
Operating Temp-40°F to 113°FDimension48”x2.88”x3.76"
CertificationsUL, Damp Locations, DLC PremiumWeight5.75 lbs
