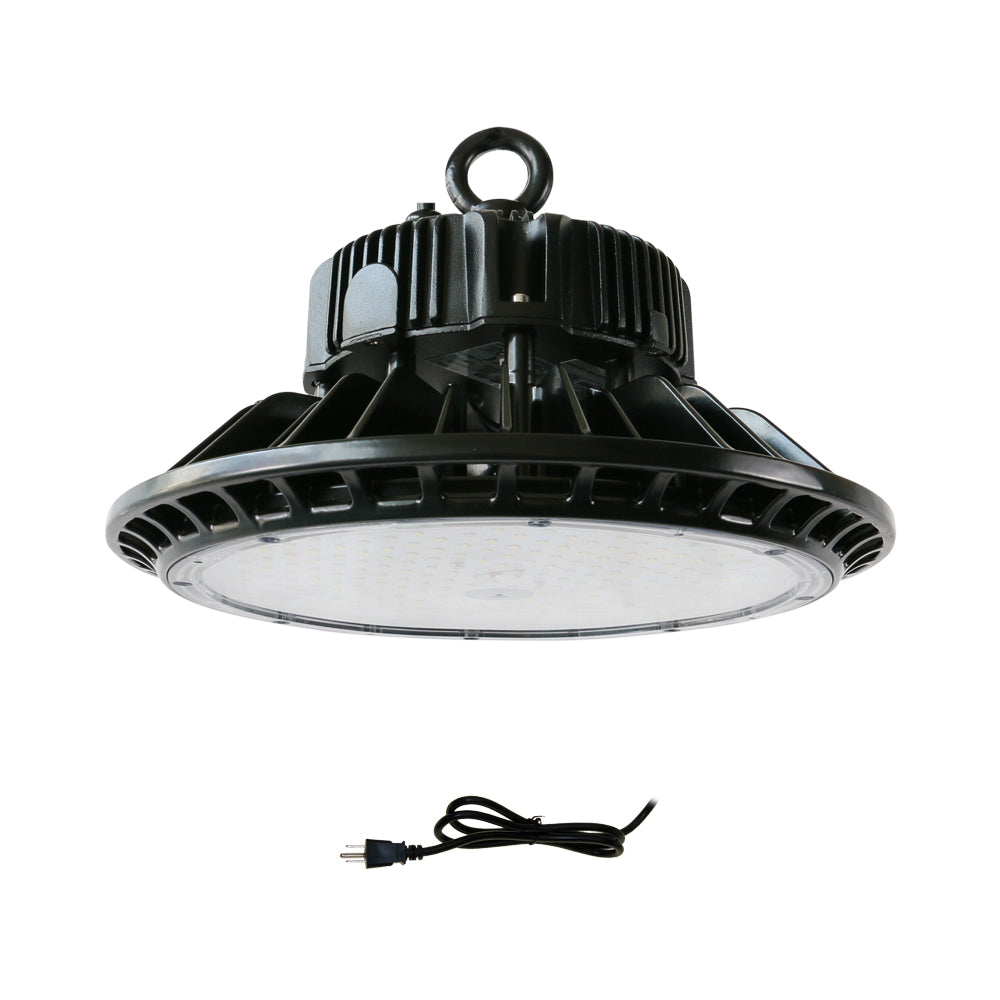

200 UFO LED High Bay Light with plug

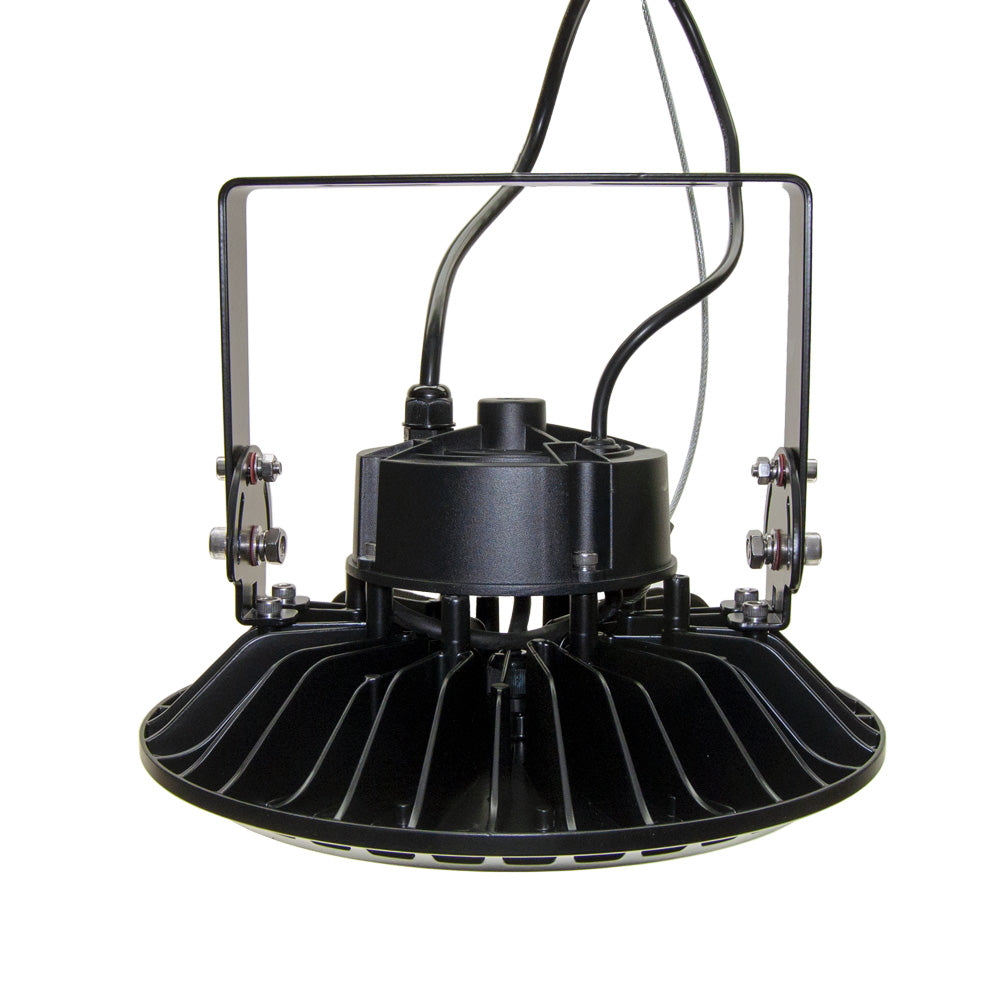

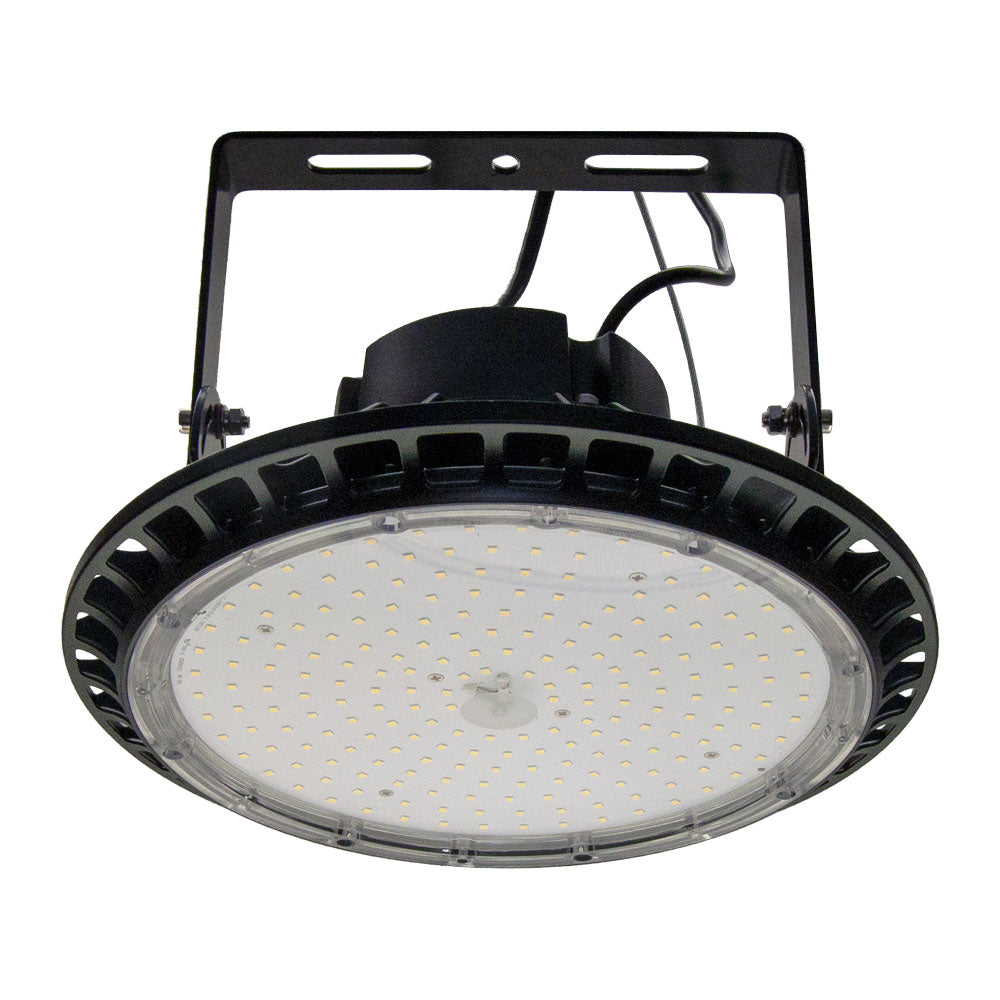

200 UFO LED High Bay Light with bracket
200 UFO LED High Bay Light with bracket

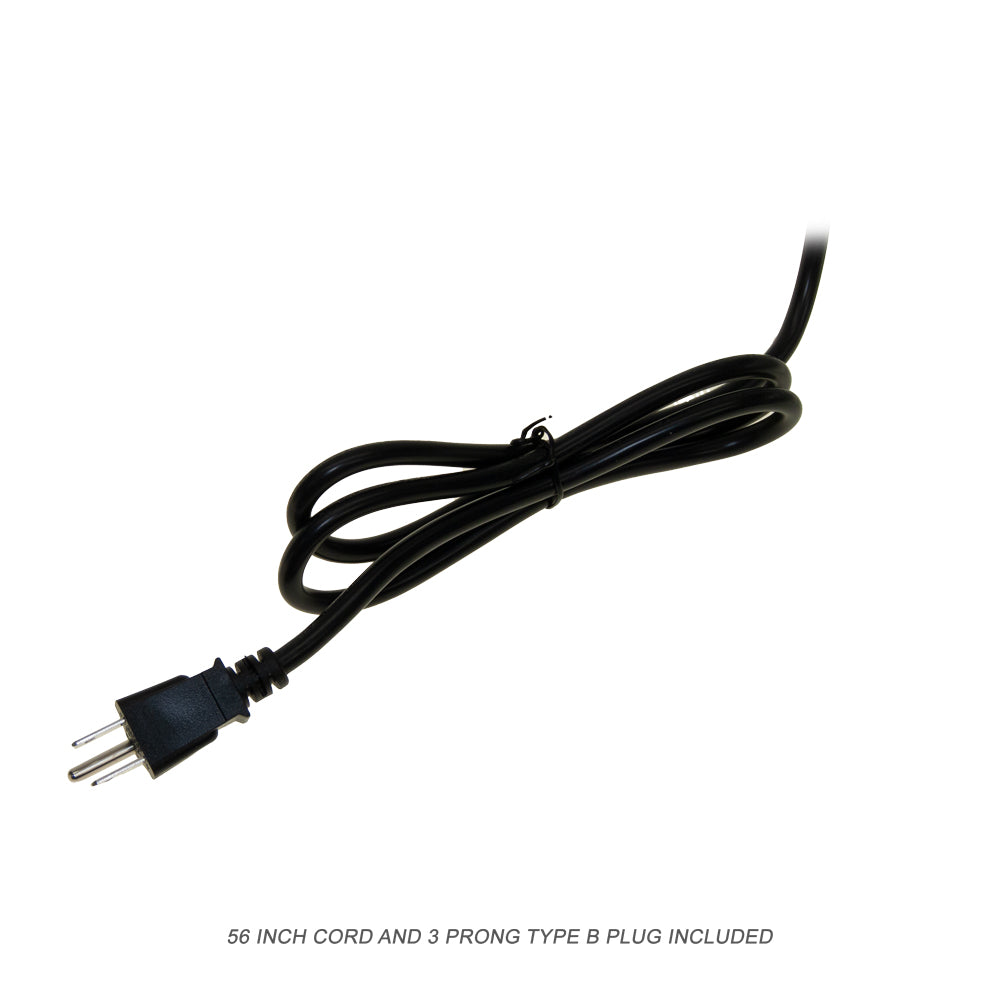

UFO Highbay's cord

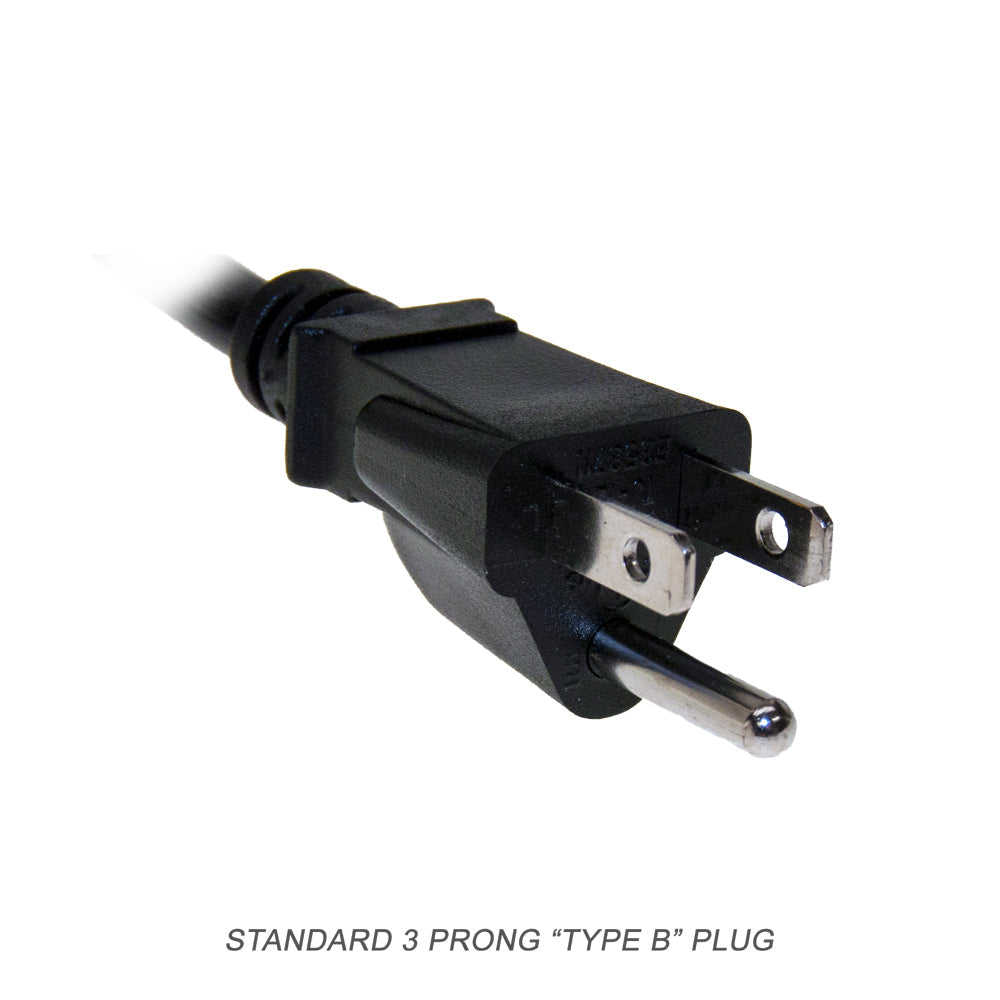

Standard 3 prong type b plug

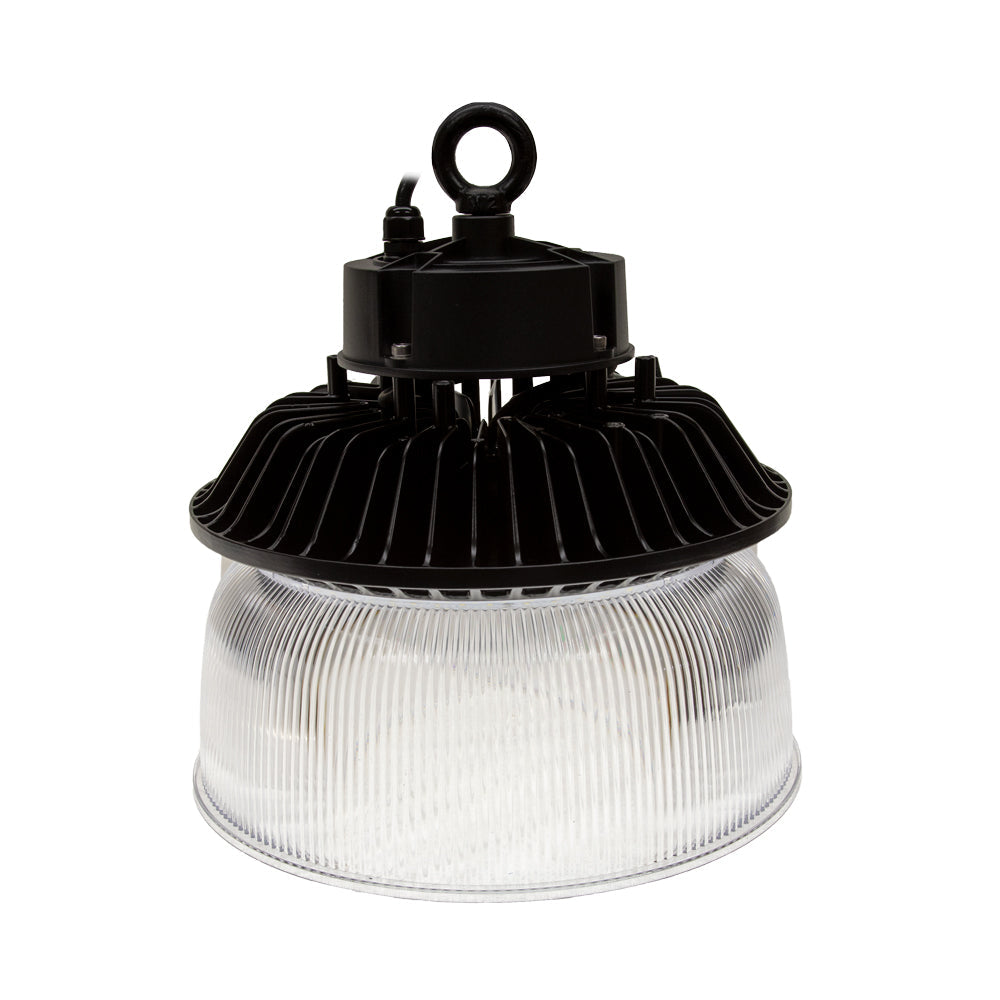

UFO highbay with Polycarbonate Diffuser
Roll over image to zoom in Click on image to zoom
200 UFO LED High Bay Light with plug200 UFO LED High Bay Light with bracket200 UFO LED High Bay Light with bracketUFO Highbay's cordStandard 3 prong type b plugUFO highbay with Polycarbonate Diffuser
  • The die cast aluminum housing is designed to allow air to pass through the spaces around the driver and LED array with ease effectively making the entire body of the fixture a heat sink.
  • Use the included eye hook to suspend this fixture. The included cored and plug can be removed where hardwiring is necessary. Additional leads for 0-10V dimming require no configuration if dimming is not used.
  • The 0-10V dimming compatibility allows for easy addition control devices such as motion and occupancy sensors.
What's in the box
1 Fixture, 1 Eye Hook, 1 Installation Guide
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

Konlite HB03 series UFO LED High Bay Light - 200W - 120-277V - 28000 lumens - 5000K - 0-10V Dimmable - 600W Equal

Konlite SKU: GL-HB03-200W50K-BA SEARCH CODE: 10-0904
  • The die cast aluminum housing is designed to allow air to pass through the spaces around the driver and LED array with ease effectively making the entire body of the fixture a heat sink.
  • Use the included eye hook to suspend this fixture. The included cored and plug can be removed where hardwiring is necessary. Additional leads for 0-10V dimming require no configuration if dimming is not used.
  • The 0-10V dimming compatibility allows for easy addition control devices such as motion and occupancy sensors.
What's in the box
1 Fixture, 1 Eye Hook, 1 Installation Guide
What's in the box
1 Fixture, 1 Eye Hook, 1 Installation Guide

Product Overview

Upgrade your space and reduce operating costs with the RH03 high bay. This compact design is easy to install, meets any budget and a Contractor favorite. Excellent efficacy, maintenance free and 120° beam provides broad even illumination. IP66 rated and sealed for dust and moisture intrusion, 0-10V dimming. A smart DLC certified value choice, that will save big compared to HID.

Applications

•Warehouses •Workshops
•Convention Centers •Low Bays
•Storage Facilities •Distribution Centers
•Factories •Supermarkets
•Retails •Gymnasiums
Color Temperature 5000K color temperature
Certifications
US companyUL listed0-10v dimmableDLC PremiumRoHS compliance FCC certification

Specifications

WarrantyLimited 5 YearsMPNGL-HB03-200W50K-BA
Input Voltage120-277VEqual to600W
Input Wattage200WDimmable0-10V
Lumens28,000CRI>70
Efficacy140 LM/WAvailable CCT5000K
Rated Life>50,000 hrsTHD<15%
Power Factor>0.9IP RatingIP65
Operating Temperature-40° to 122° FDimensions12.2" x 8.03"
CertificationsUL, Damp Locations, DLC PremiumWeight11 lbs
