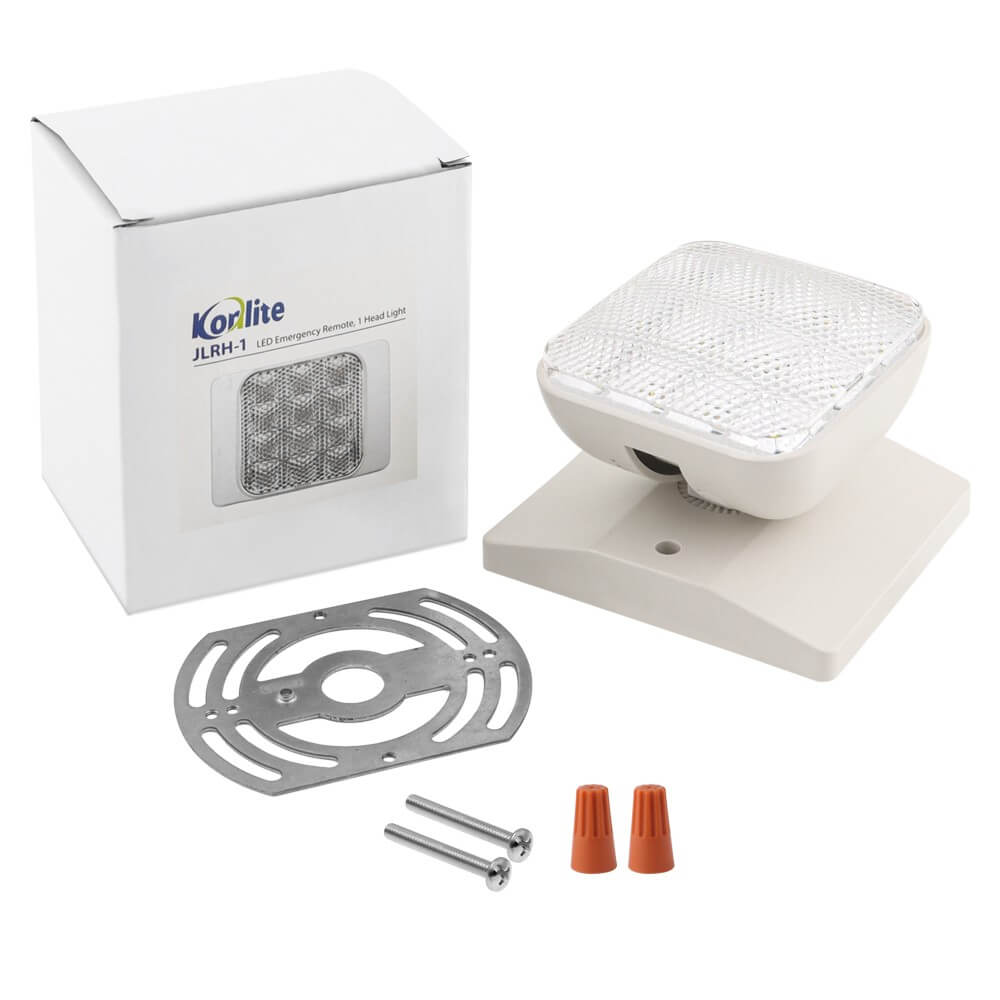

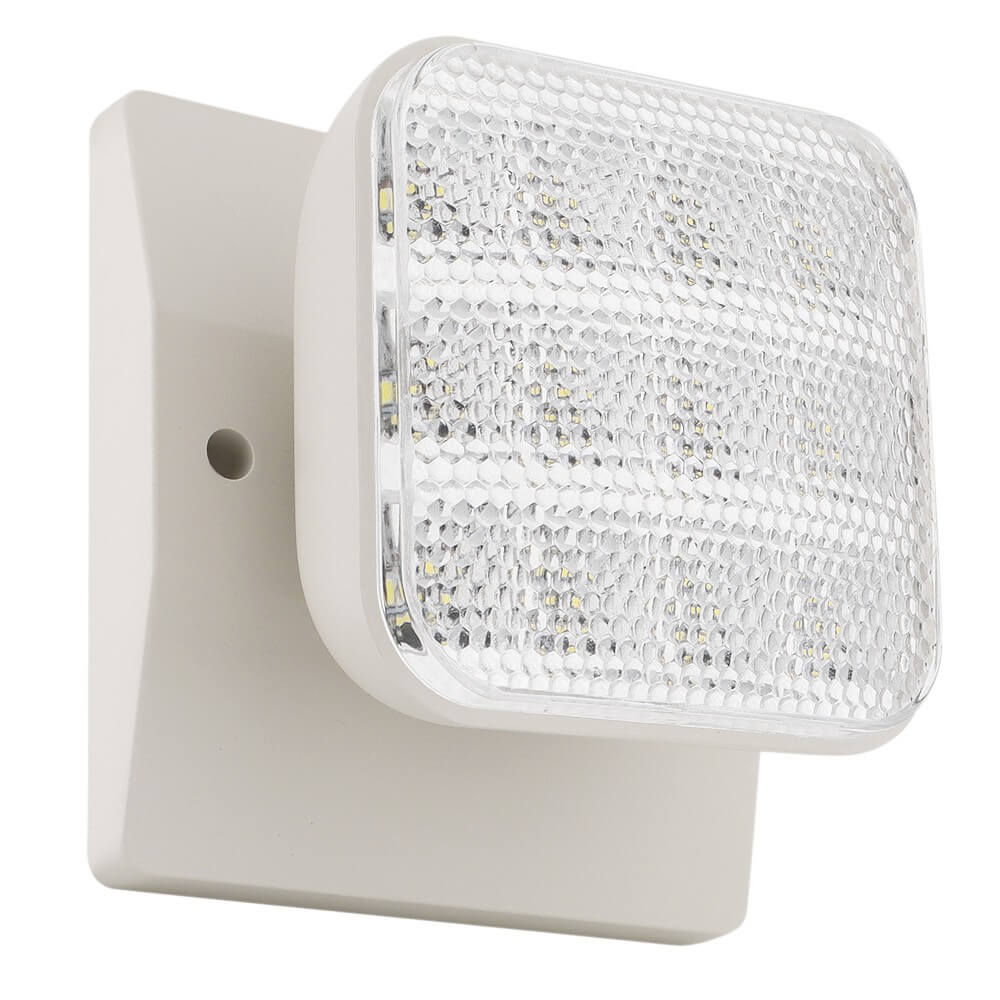

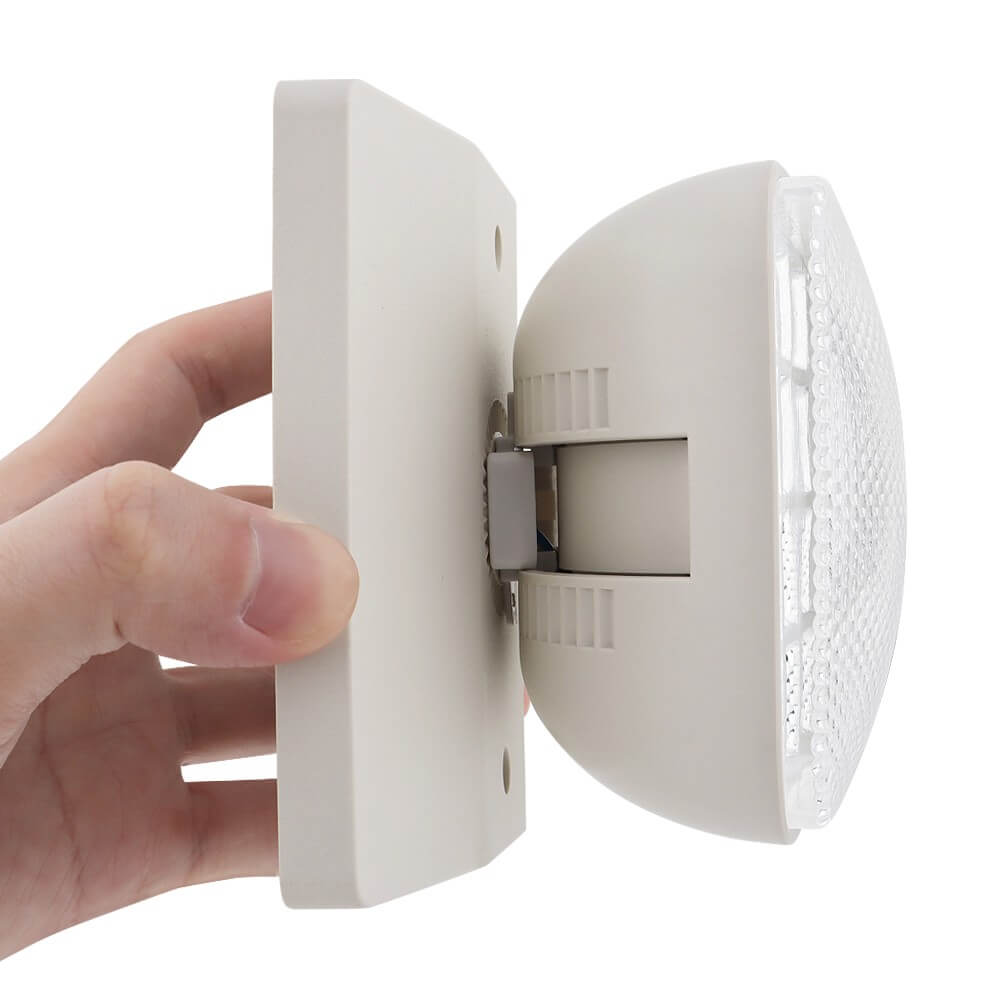

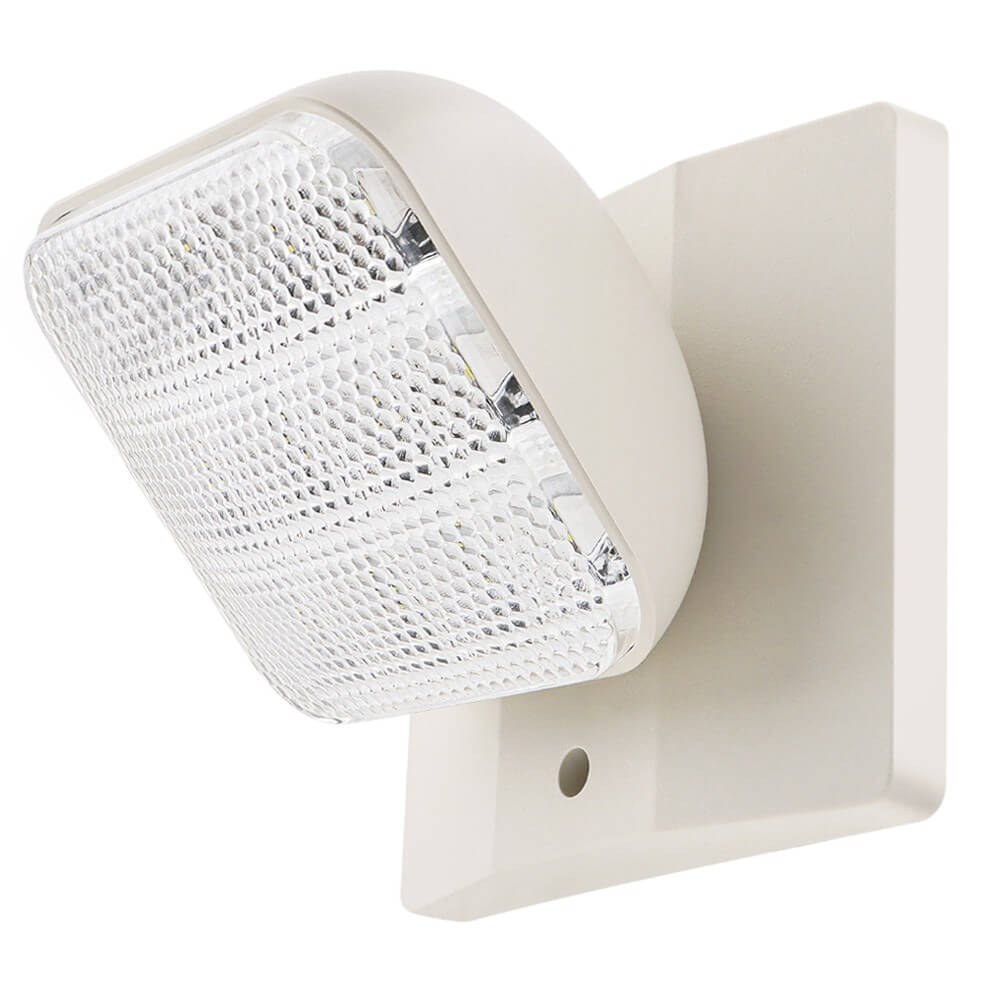

LED Emergency Light Remote Head - Single - Indoor Use - 3.6V/9.6V

Konlite SKU: JLRH-1 SEARCH CODE: 24-0205
    • For Use with Remote Head Capable Exit light or Sign
    • One 0.75W LED Square Lamp Head
    • 100 Lumens Output
    • Flame Retardant, High Impact Thermoplastic Build
    • UL 924 Listed
  • Suitable for wall or ceiling mount

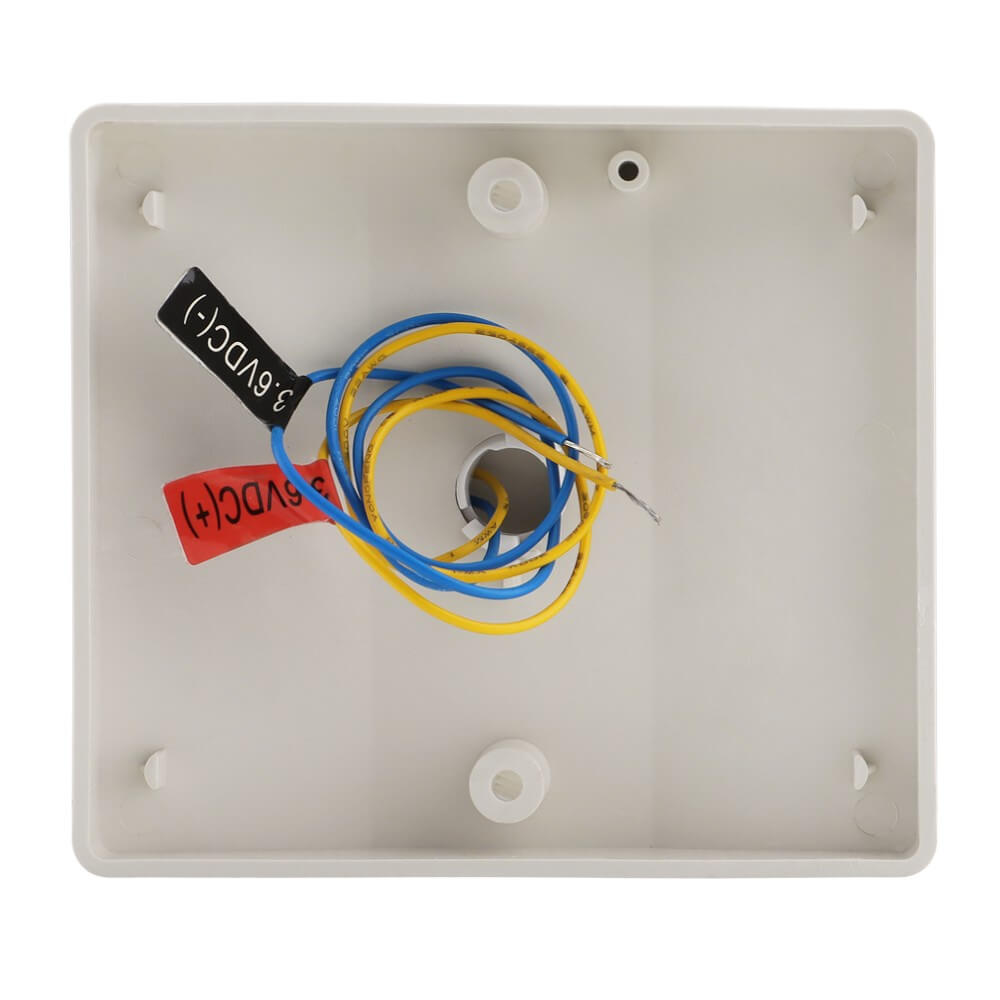

  • Mounting plate with EZ Quick Connect for fast installation
  • One JLEU9RC or JLEC2BCWRC supports up to 2 heads for 90-minute operation during power loss.
  • UL listed for damp locations & meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes

Product Overview

The Konlite LED Emergency Light Remote Head is designed for reliable, indoor emergency lighting in commercial and residential spaces. Featuring a single ultra-bright LED head, this remote unit operates at 3.6V or 9.6V with 0.75W power, delivering 100 lumens for essential illumination during power outages.

Key Features:

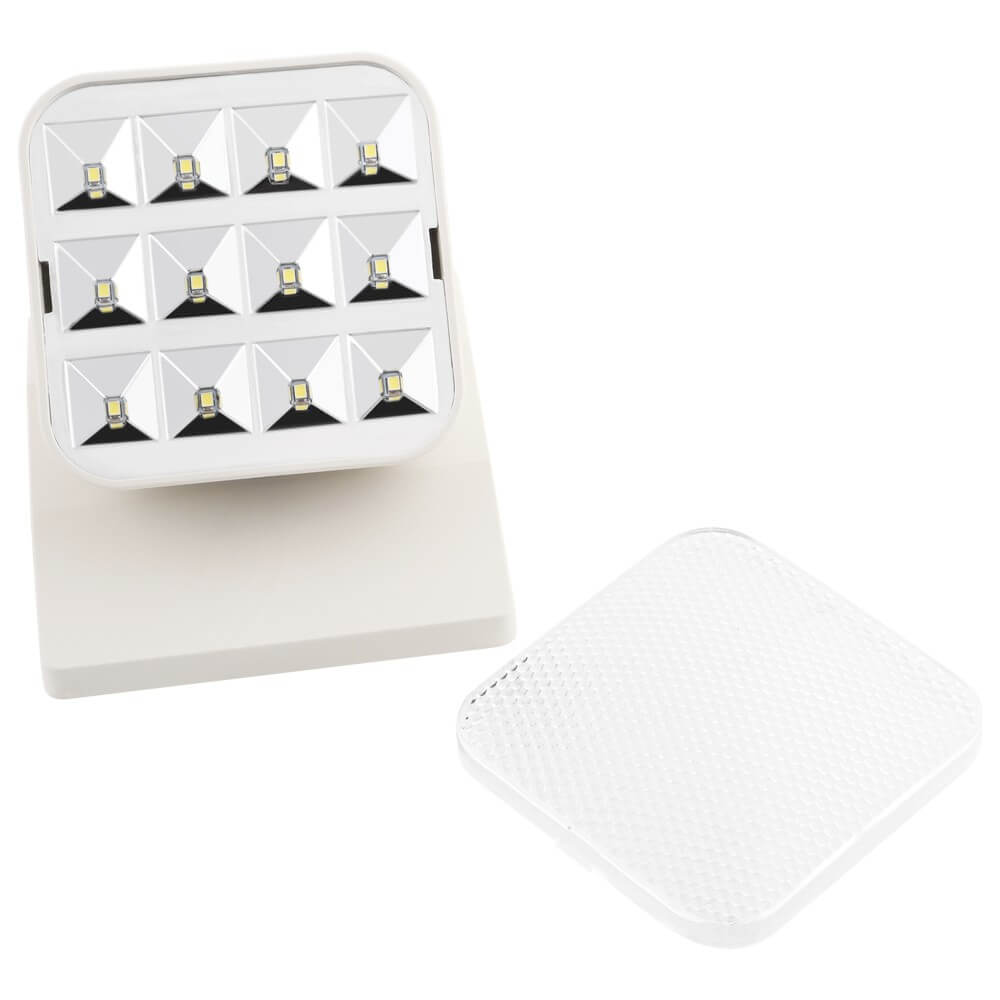

  • Single LED Head: Equipped with 12 ultra-bright SMD2835 LEDs, providing high visibility in emergencies.
  • Energy Efficient: Low power consumption at 0.75W, making it ideal for extended emergency lighting.
  • Durable Construction: Made from injection-molded, flame-retardant thermoplastic housing for enhanced durability and safety.
  • Indoor Use: Specifically designed for indoor applications to meet emergency lighting standards.
  • Compact Design: Small and easy to install, ideal for various locations requiring emergency lighting.

This LED remote head is a dependable addition to any emergency lighting system, offering long-lasting, efficient illumination when you need it most.

Applications:

Ideal for office buildings, shopping centers, hotels, warehouses, restaurants, hospitals, and more, especially in areas requiring dependable emergency lighting.


Certifications
US companyUL listedRoHS compliance FCC certification

Specifications

BrandKonliteMPNJLRH-1
Warranty3 YearsLamp Head Wattage0.75W
Input Voltage3.6V/9.6V DCLamp Heads1 Adjustable LED
Input Wattage1.2WInstallation MethodFlush Mount
Full Recharge TimeMaximum 24 hrsEmergency Run Time90 Mins
Operating Temp32°F to 104°FFixture Dimensions-
CertificationsUL, cUL, CEC, DOEUnit Weight1 Lbs
