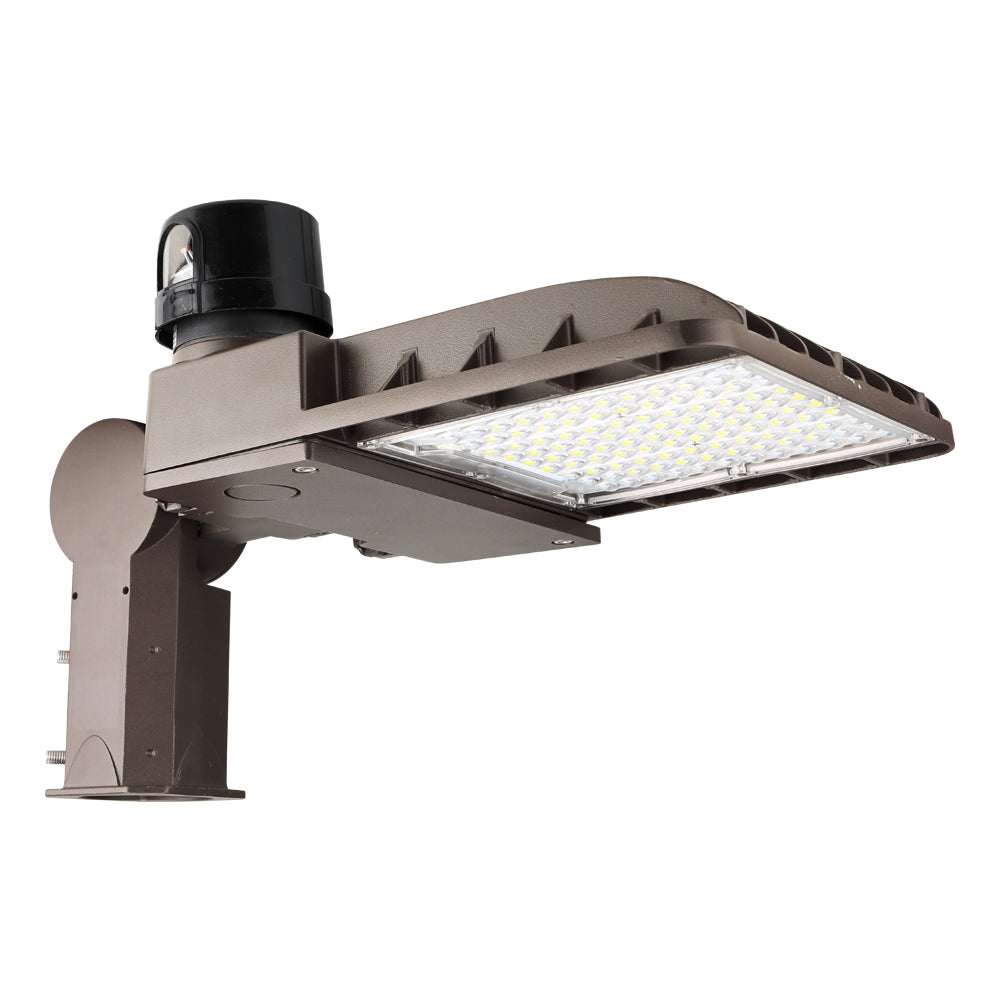

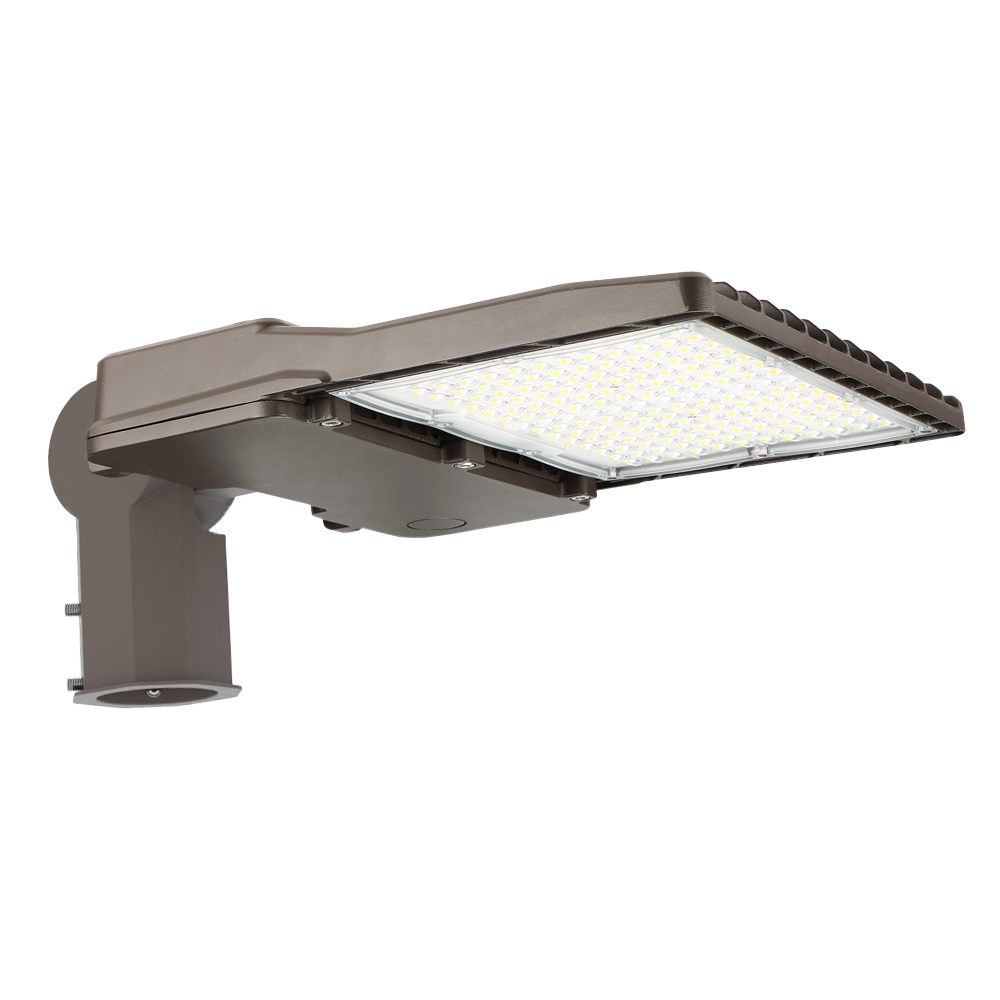

Konlite LED Outdoor Area Light - 100W - Type III - 13,500 Lumens - 4000K - 120-277V - 320W Equal

Konlite SKU: RDAL02041004KDNSFL3D SEARCH CODE: 20-0206
    • Replaces 320W Metal Halide Light
    • Price Includes One Mounting Bracket
    • 100,000 hours lifespan
    • 4000K Neutral White
    • 13,800 Lumens

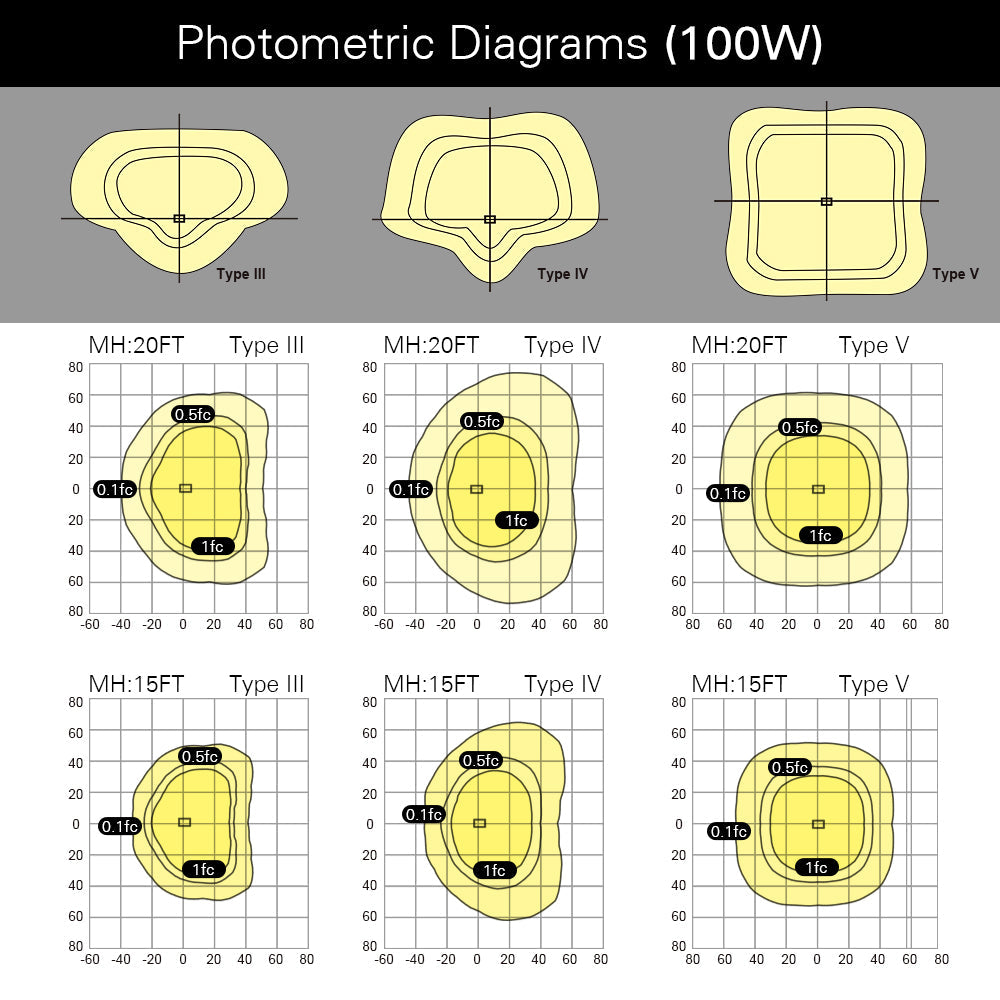

    • Distribution: Type 3
    • Certificates: UL, DLC 5.1 Premium
    • 5-Year Warranty

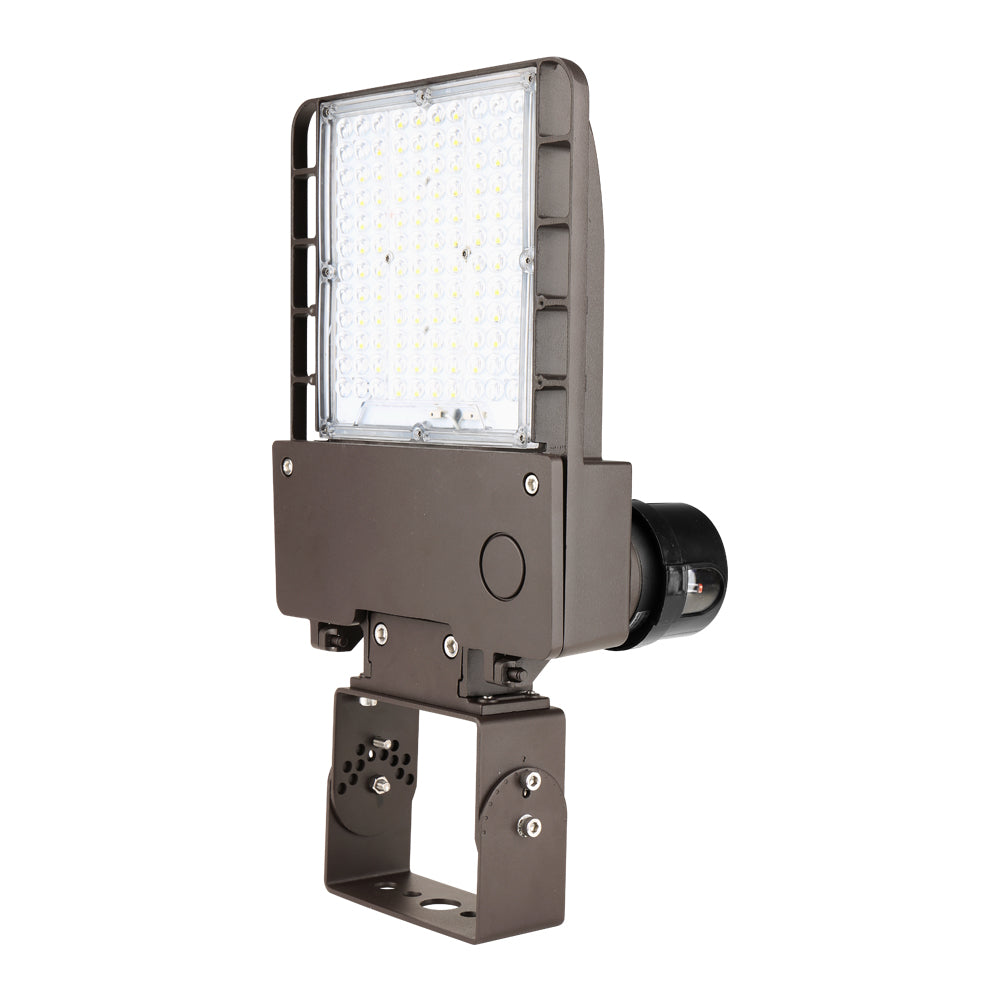

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. It can be used as dusk to dawn light with optional photocell. Ideal for parking lot, street, flood and other outdoor area applications.

  • Designed for easy one person install
  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan, Five year warranty
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Instillation Guide
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Instillation Guide

Product Overview

Ensure the safety of your patrons, employees and the security of your premises with the versatile Konlite AL04 Area Light.  Eliminate maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (floods).

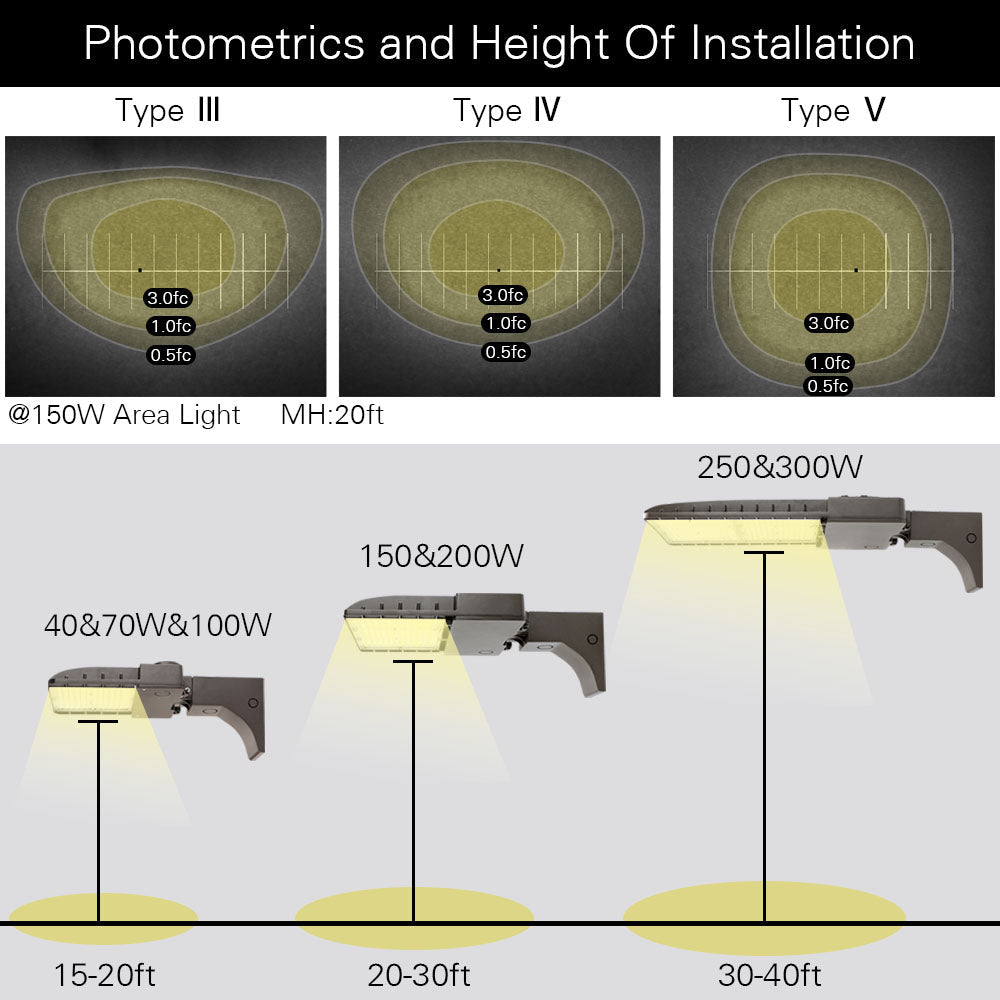

100 Watts, 13,500 Lumens, 4000K, Type III Beam Distribution, 120-277V

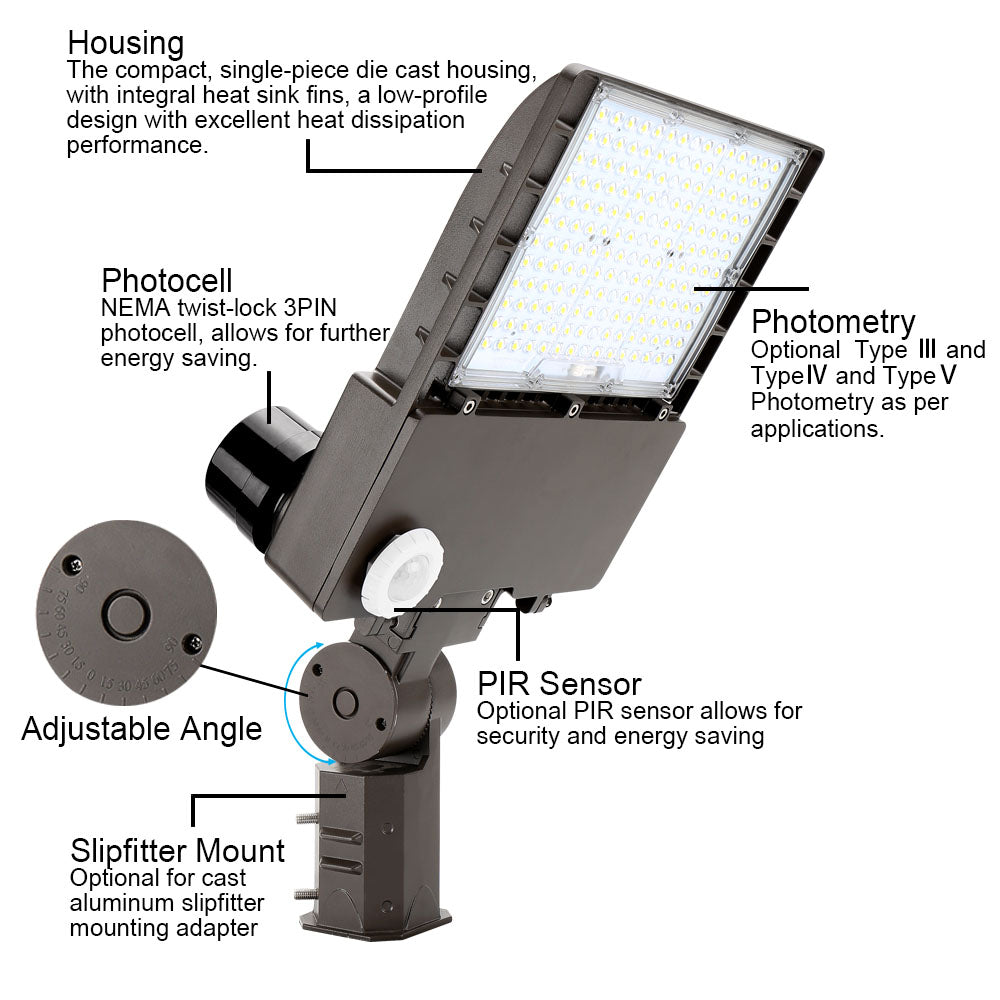

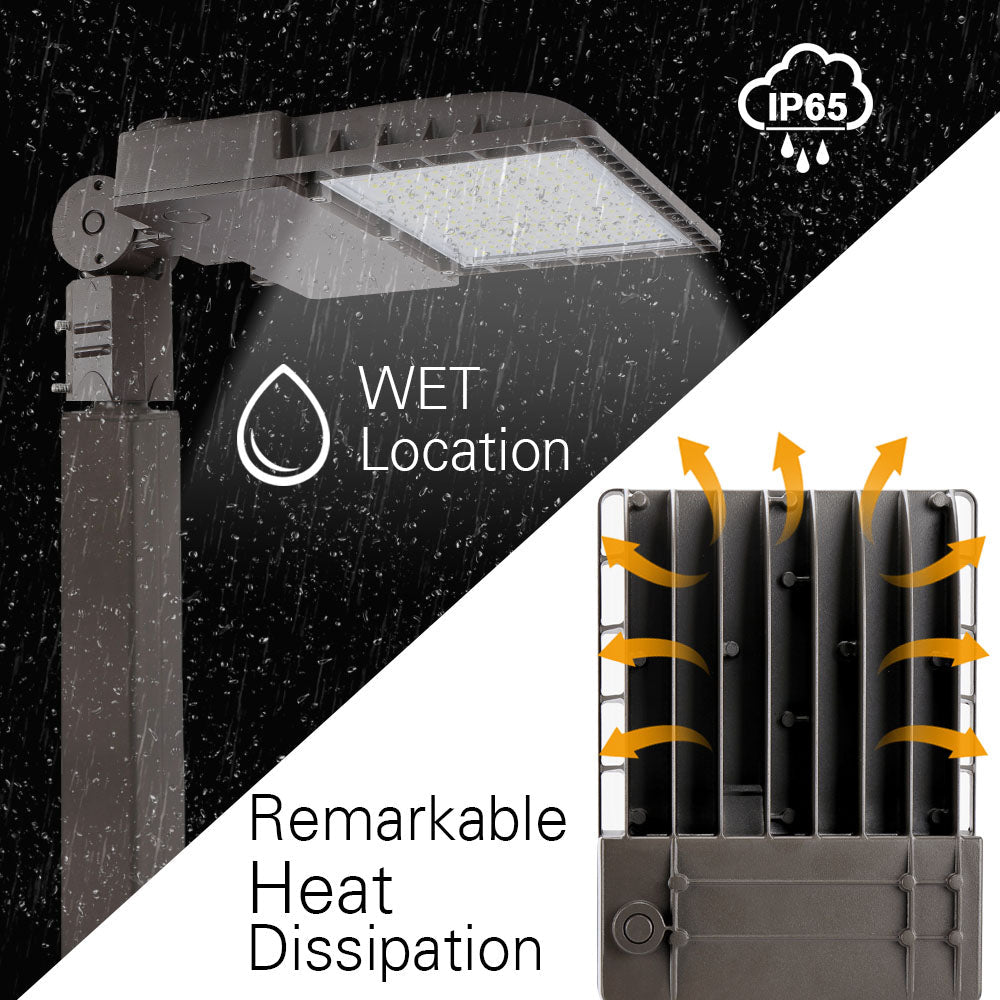

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

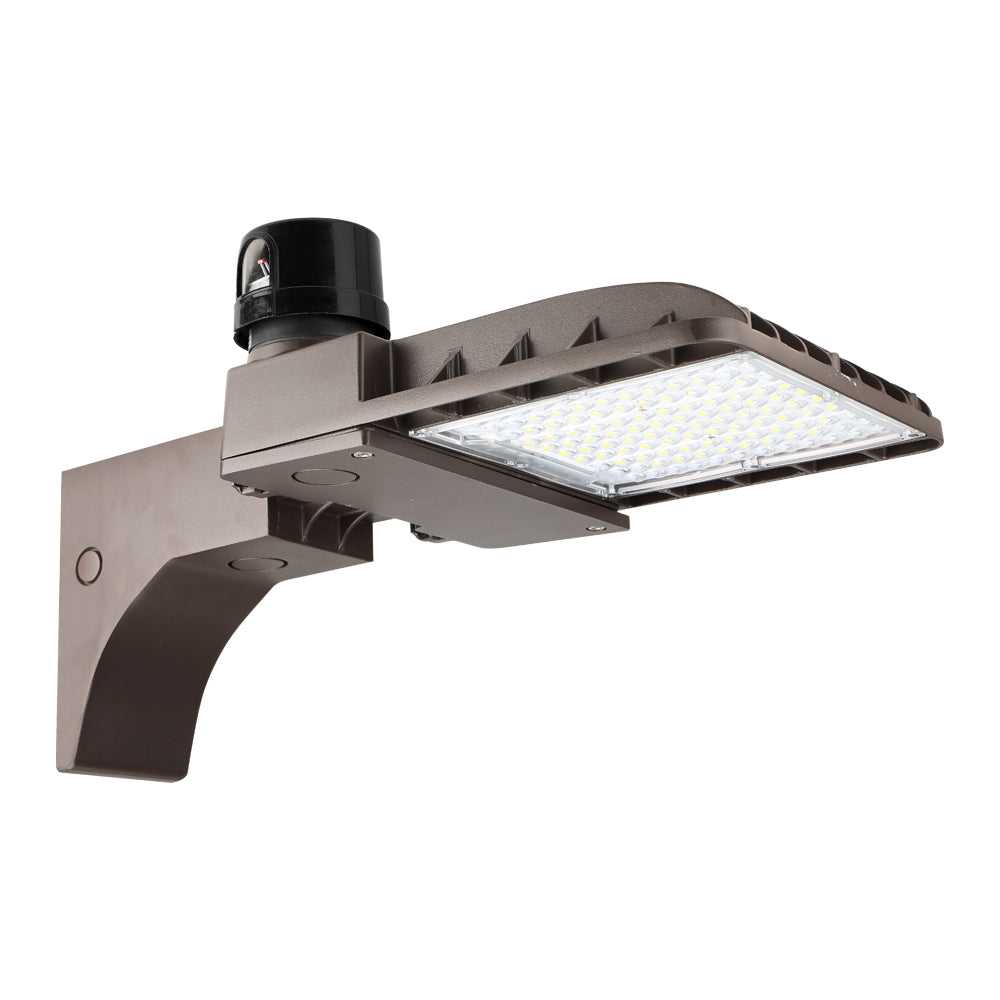

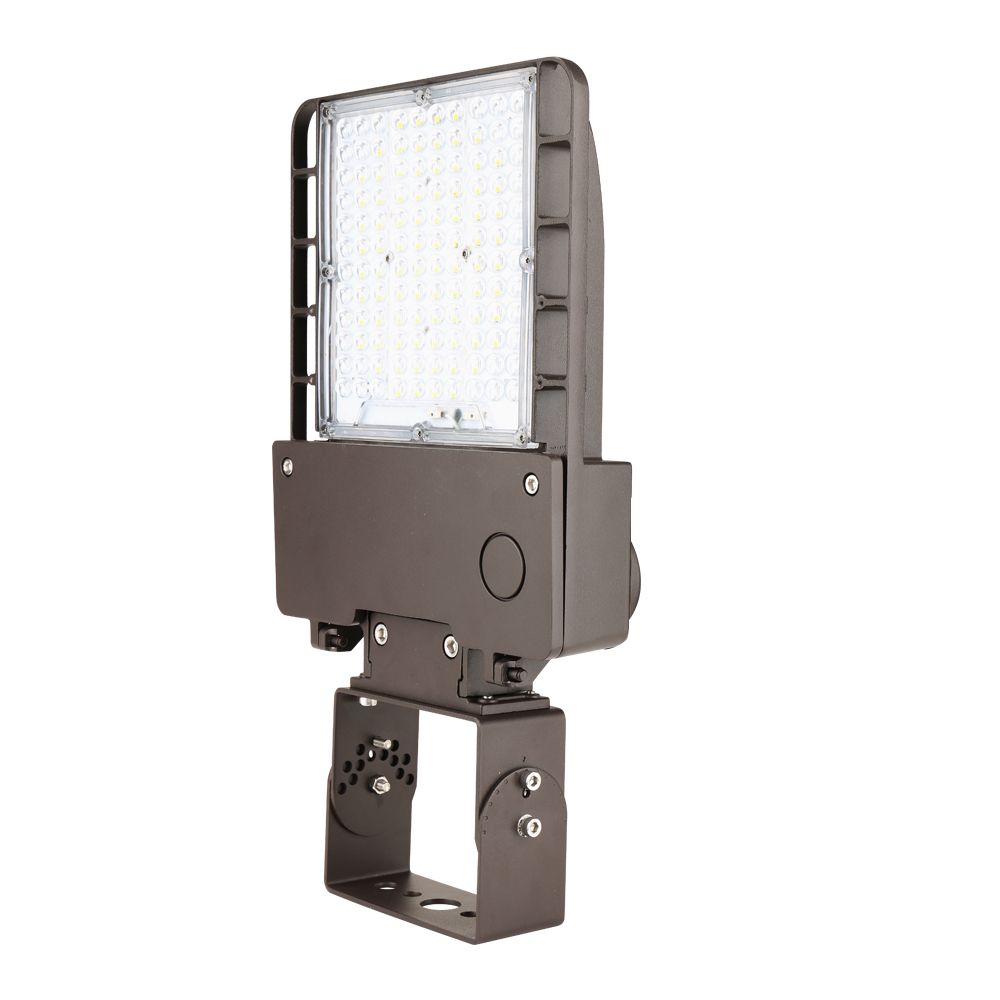

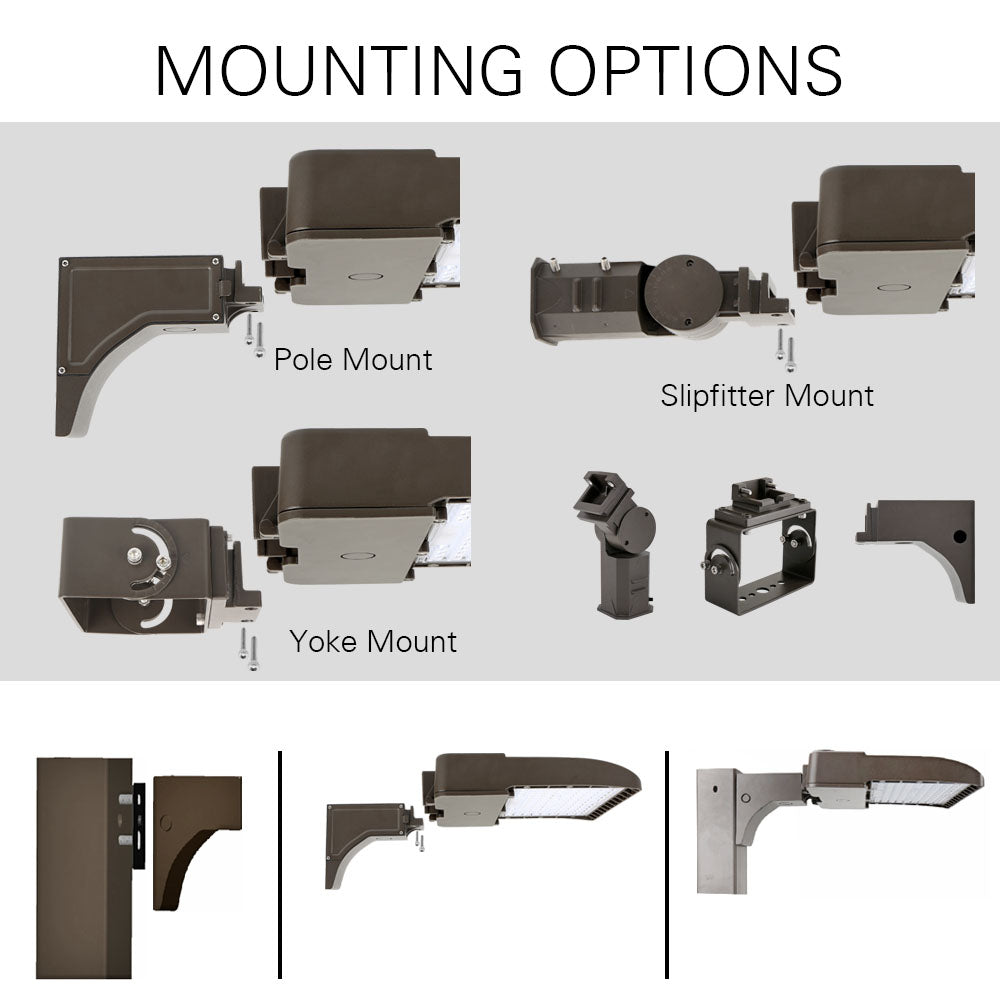

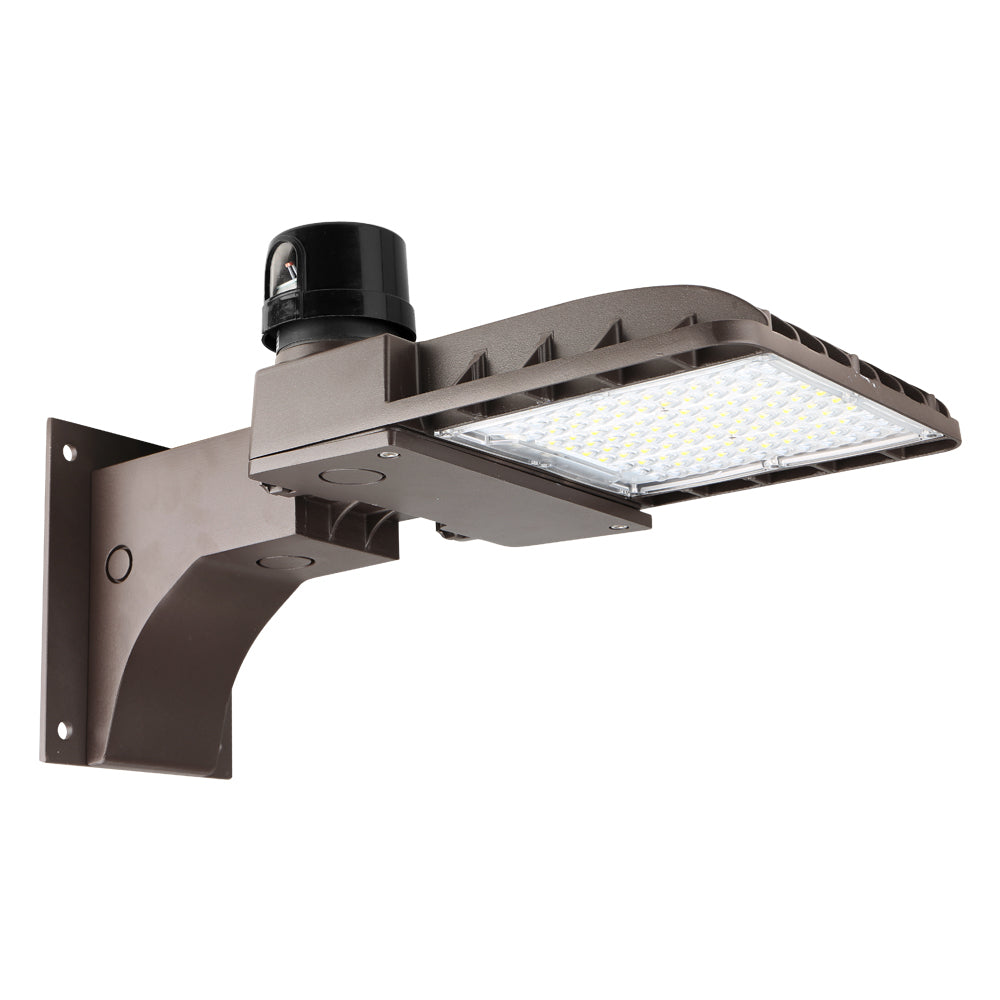

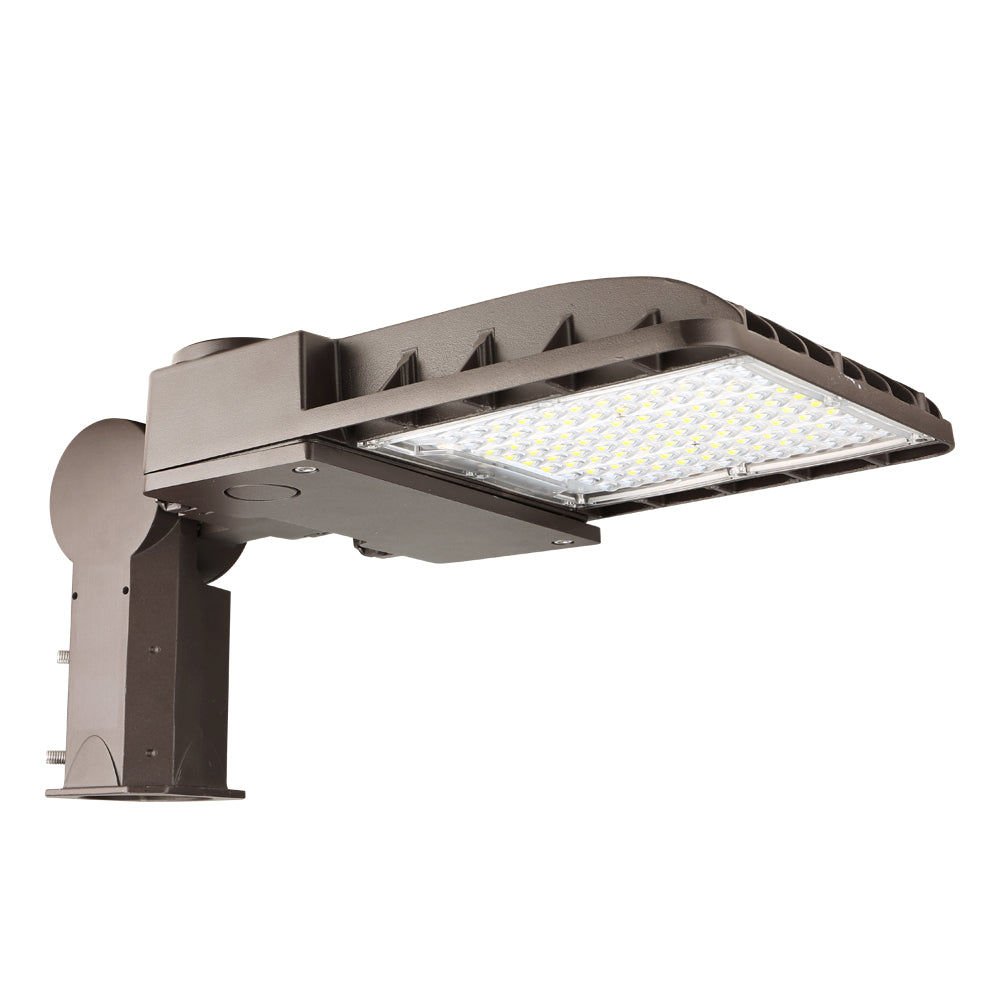

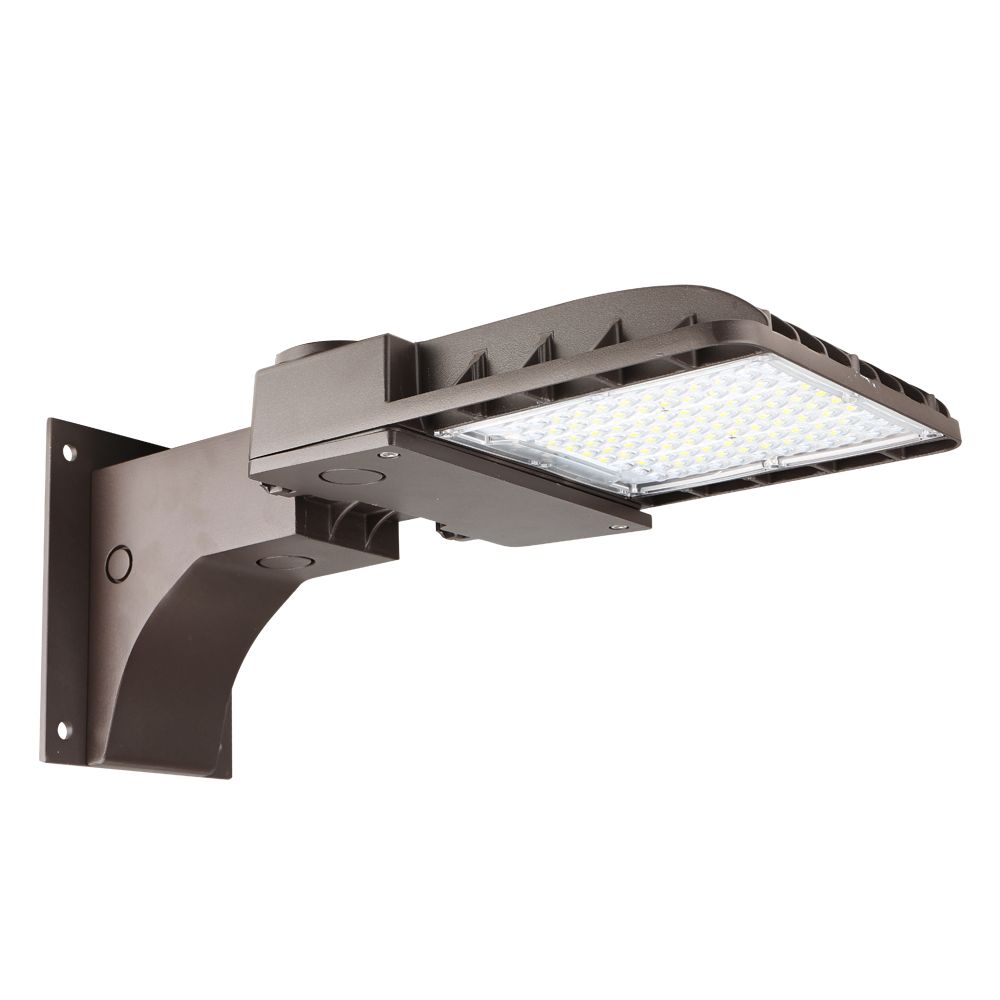

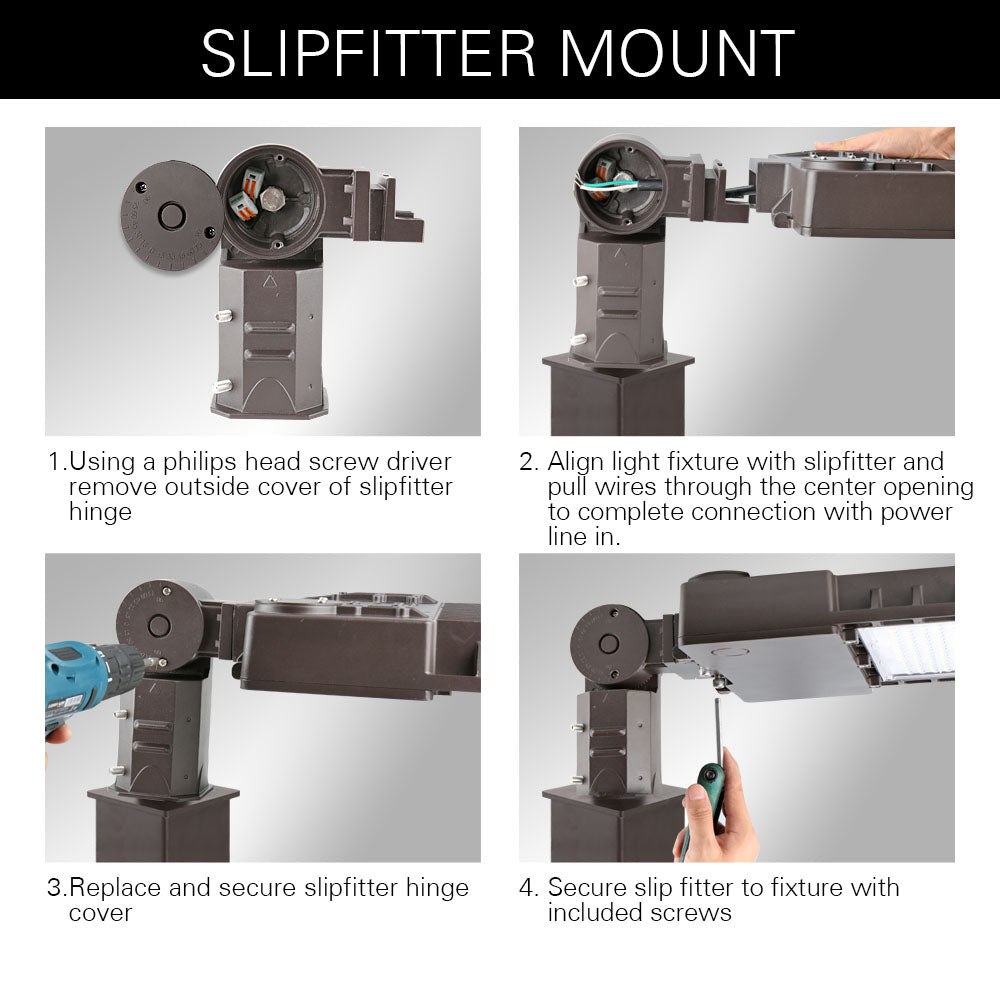

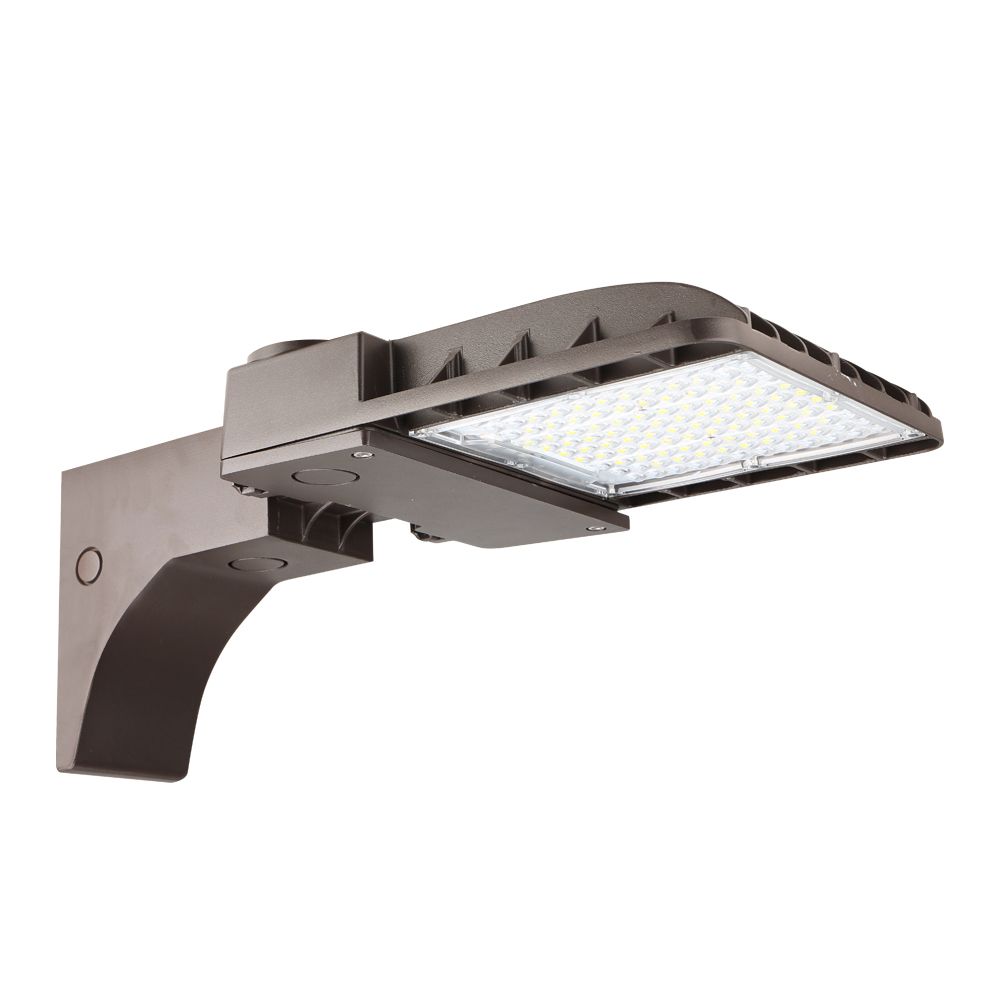

Mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount

UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 5-year warranty

See similar 150-watt, 200-watt, 300-watt versions.

Applications



• Area Lighting • Parking Lots
• Streets

• Building Façade

• Storage Facilities • Underpasses & Tunnel
• Boat Docks & Marinas • Billboards
• Warehouses • Metal Buildings
• Roadways & Pathways • Stadiums
• Outdoor Recreations • Outdoor Common Areas
• Parks • Car Dealerships
Color Temperature 4000K color temperature
Certifications
US company5 years warrantyUL listedETL listedDLC PremiumRoHS compliance FCC certificationIP65 rating

Specifications:

BrandKonliteDLC Part #RDAL02041004KXXXXXX
WarrantyLimited 5 YearsUPC752480729178
Input Voltage120-277VOpticalType III
Input Wattage100WEqual to320W MH
Delivered Lumens13,500CRI>70
Efficacy135 LM/WAvailable CCT4000K
Rated Life>100,000 hrsTHD<20%
Power Factor>0.9IP RatingIP65
DimmableCall us for 1-10V Dimming AvailabilityControlsTimer

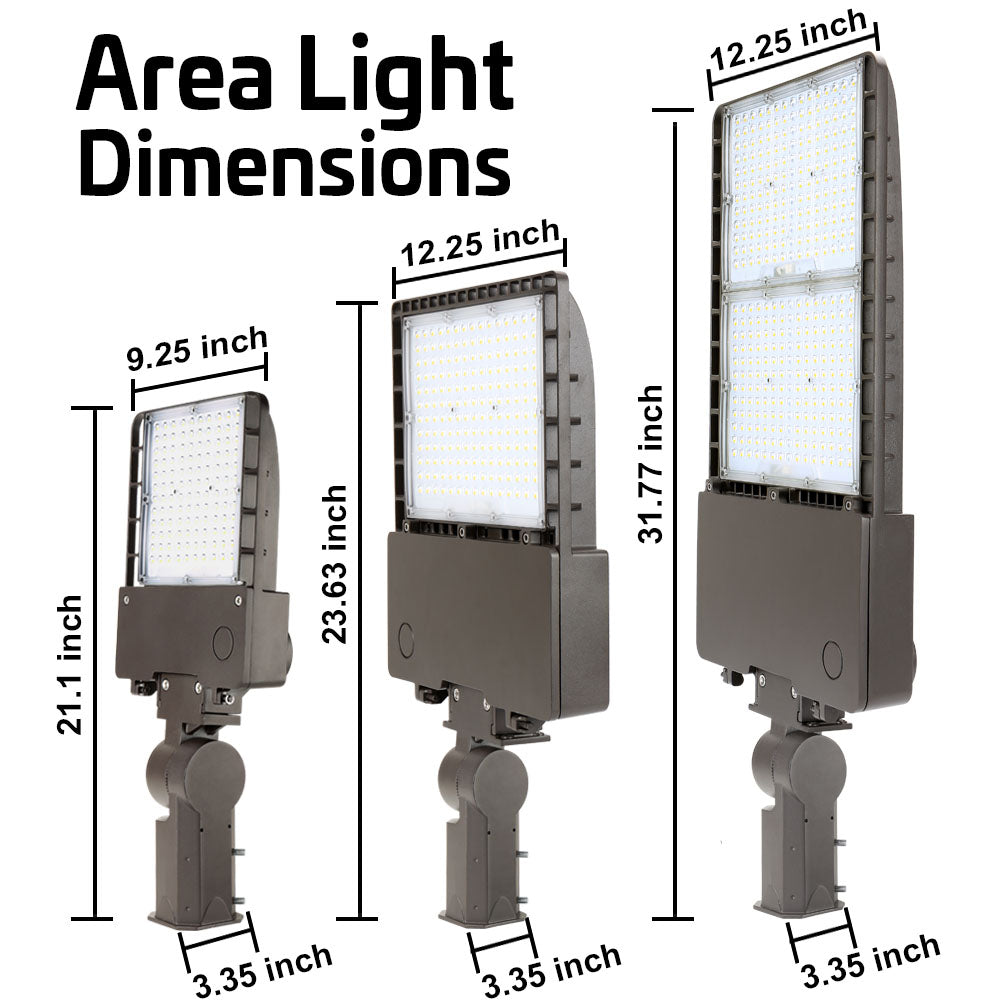

Operating Temperature-40 F to 113 FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumWeight11 lbs

Accessories

4" Square Pole Mount Tenon Adapter
4" Square Pole Mount Tenon Adapter
SKU: RDAF-4SQ-SP-D SEARCH CODE: 20-0012
Quad Spoke 90° Tenon Adapter
Quad Spoke 90° Tenon Adapter
SKU: RDAF-R60-SP4-90-D SEARCH CODE: 20-0002
Twin Spoke 180° Tenon Adapter
Twin Spoke 180° Tenon Adapter
SKU: RDAF-R60-SP2-180-D SEARCH CODE: 20-0003
5" Square Pole Mount Tenon Adapter
5" Square Pole Mount Tenon Adapter
SKU: RDAF-5SQ-SP-D SEARCH CODE: 20-0011
Triple Spoke 120° Tenon Adapter
Triple Spoke 120° Tenon Adapter
SKU: RDAF-R60-SP3-120-D SEARCH CODE: 20-0004
Twin Spoke 90° Tenon Adapter
Twin Spoke 90° Tenon Adapter
SKU: RDAF-R60-SP2-90-D SEARCH CODE: 20-0005
Wall and Square Pole Mount Tenon Bracket
Wall and Square Pole Mount Tenon Bracket
SKU: RDAF-SQ-SP-D SEARCH CODE: 20-0006
90° Wall Mount Tenon Bracket
90° Wall Mount Tenon Bracket
SKU: RDAF-WM-SP-D SEARCH CODE: 20-0007
5" Round Pole Mount Tenon Reducer
5" Round Pole Mount Tenon Reducer
SKU: RDAF-5SQR-SP-D SEARCH CODE: 20-0009
Pole Top Tenon and Trunnion Adapter
Pole Top Tenon and Trunnion Adapter
SKU: RDAF-SP-TR-D SEARCH CODE: 20-0008
4" Round Pole Mount Tenon Reducer
4" Round Pole Mount Tenon Reducer
SKU: RDAF-4SQR-SP-D SEARCH CODE: 20-0010
Triple Spoke 90° Tenon Adapter
Triple Spoke 90° Tenon Adapter
SKU: RDAF-R60-SP3-90-D SEARCH CODE: 20-0001
